概要

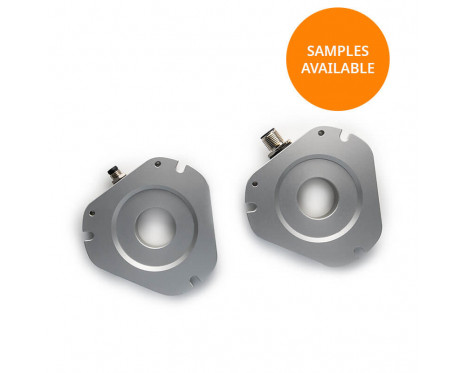

Orbis™ housed through-hole rotary encoder is an encoder for mounting on electric motors or other devices for measuring shaft position and speed. The solid metal housing offers high IP67 protection and high EMC immunity and best possible shock and vibration resistance.
機能
- BiSS and SSI output
- True absolute with 14-bit resolution
- Analogue output with one sin/cos per revolution
- M12, M8 connector or cable with flying leads
メリット
- Trough Hole design
- IP67 protection for harsh environments
- Easy installation
- Two sizes
- Built-in self-diagnostics
Request a sample
製品データ
システム
読取りタイプ
軸方向
分解能
Analogue: One sin/cos per revolution, BiSS / SSI: 14 bit
電気
供給電圧
5V±10%
機械
Available ring sizes (inner diameter)
17 mm , 25 mm
環境
動作時/保管時温度
-20 °C to +85 °C (with connector), -30 °C to +120 °C (with cable)
