概觀

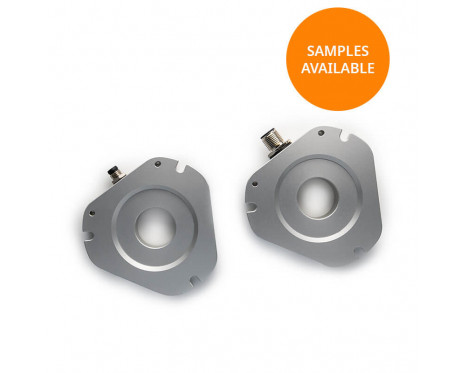

Orbis™ housed through-hole rotary encoder is an encoder for mounting on electric motors or other devices for measuring shaft position and speed. The solid metal housing offers high IP67 protection and high EMC immunity and best possible shock and vibration resistance.
特徵
- BiSS and SSI output
- True absolute with 14-bit resolution
- Analogue output with one sin/cos per revolution
- M12, M8 connector or cable with flying leads
優點
- Trough Hole design
- IP67 protection for harsh environments
- Easy installation
- Two sizes
- Built-in self-diagnostics
Request a sample
產品資料
系統
讀取類型
軸向
解析度
Analogue: One sin/cos per revolution, BiSS / SSI: 14 bit
電氣
供應電壓
5 V ± 10 %
機械
Available ring sizes (inner diameter)
17 mm , 25 mm
環境
工作及存放條件
-20 °C to +85 °C (with connector), -30 °C to +120 °C (with cable)
