概述

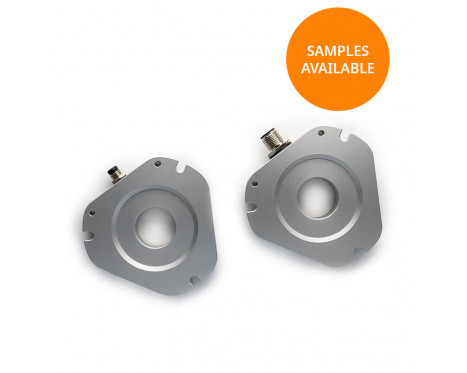

Orbis™ housed through-hole rotary encoder is an encoder for mounting on electric motors or other devices for measuring shaft position and speed. The solid metal housing offers high IP67 protection and high EMC immunity and best possible shock and vibration resistance.
特性
- BiSS and SSI output
- True absolute with 14-bit resolution
- Analogue output with one sin/cos per revolution
- M12, M8 connector or cable with flying leads
优点
- Trough Hole design
- IP67 protection for harsh environments
- Easy installation
- Two sizes
- Built-in self-diagnostics
Request a sample
产品数据
系统
读取类型
轴向
分辨率
Analogue: One sin/cos per revolution, BiSS / SSI: 14 bit
电气
电源电压
5 V ?10 %
机械
Available ring sizes (inner diameter)
17 mm , 25 mm
环境
工作和存储温度
-20 °C to +85 °C (with connector), -30 °C to +120 °C (with cable)
