개요

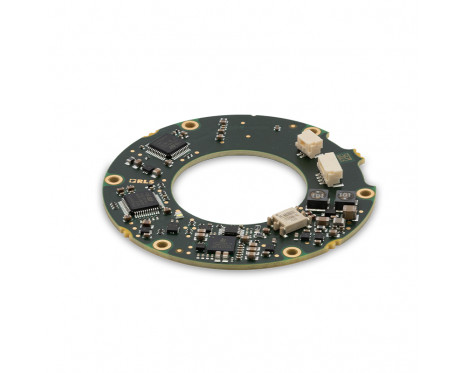

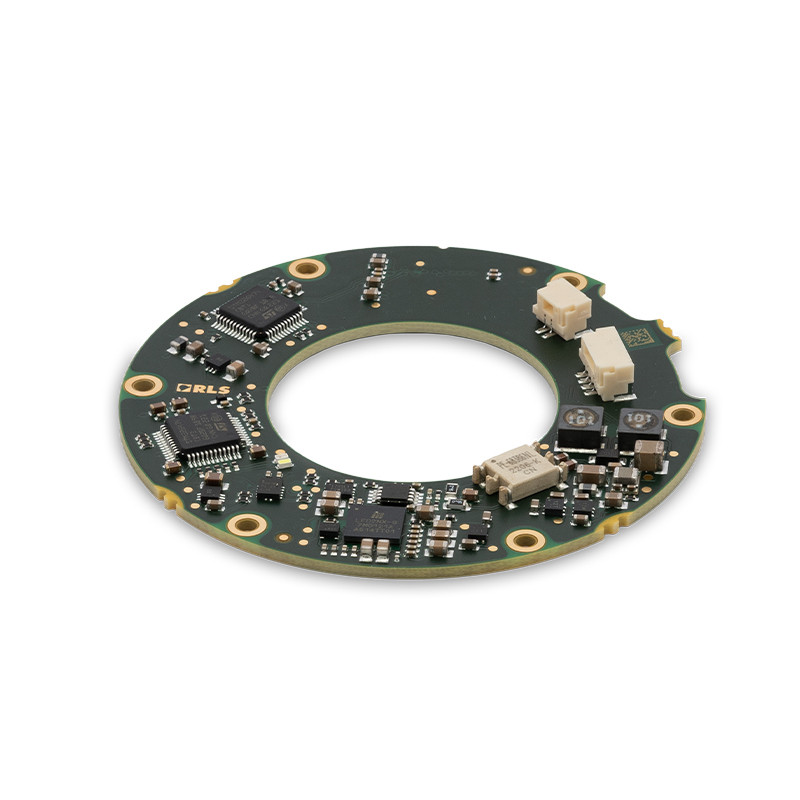

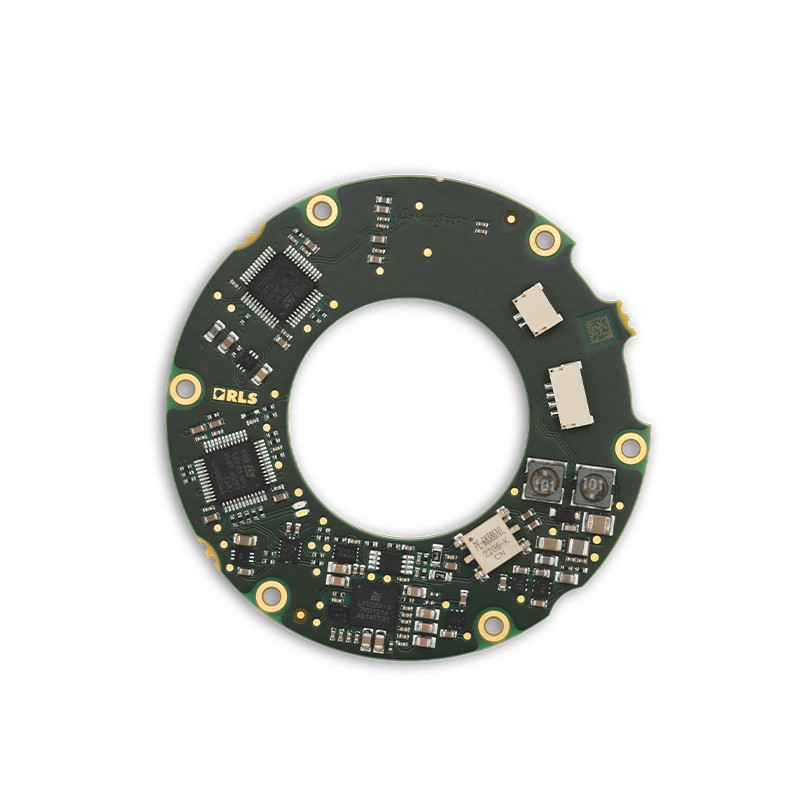

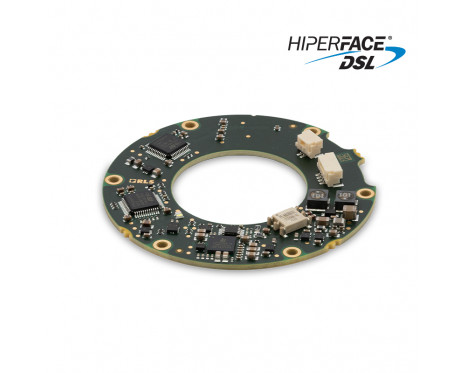

AksIM-4 is a non-contact, high performance off-axis absolute rotary encoder. It is designed for integration into applications with limited space. A hollow ring, true absolute functionality and Hiperface DSL protocol make this encoder suitable for compact servo motor applications. The AksIM-4 encoder system consists of an axially magnetised ring and a readhead.
기능
- True absolute system
- Custom magnetic sensor ASIC
- Self-calibration option
- Low profile, non contact
이점
- Reduced wiring complexity
- High speed data transmission
- Cost efficient
- Possibility for more compact motor design
Request a sample
제품 데이터
시스템
엔코더 유형
트루 앱솔루트 엔코더
판독 유형
로터리, 축 방향
최대 분해능
20비트
시스템 정확도
최대 ±0.005°
전기
공급 전압
7 V ~ 12 V (커넥터에서)
전류 소모
통상 85 mA, 12 V - 커넥터에서, 최대 1.4 W
기계
사용 가능한 링 크기(외부 직경)
53 mm, 80 mm
환경
작동 및 보관 온도
-40 °C ~ +105 °C
