概觀

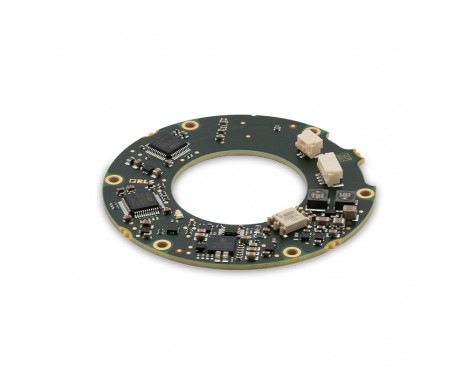

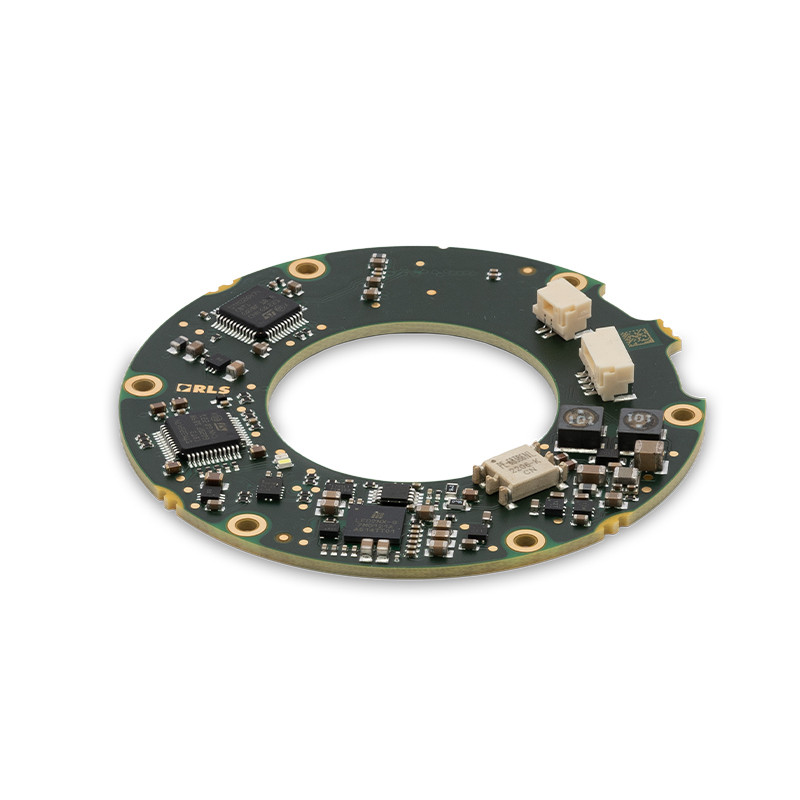

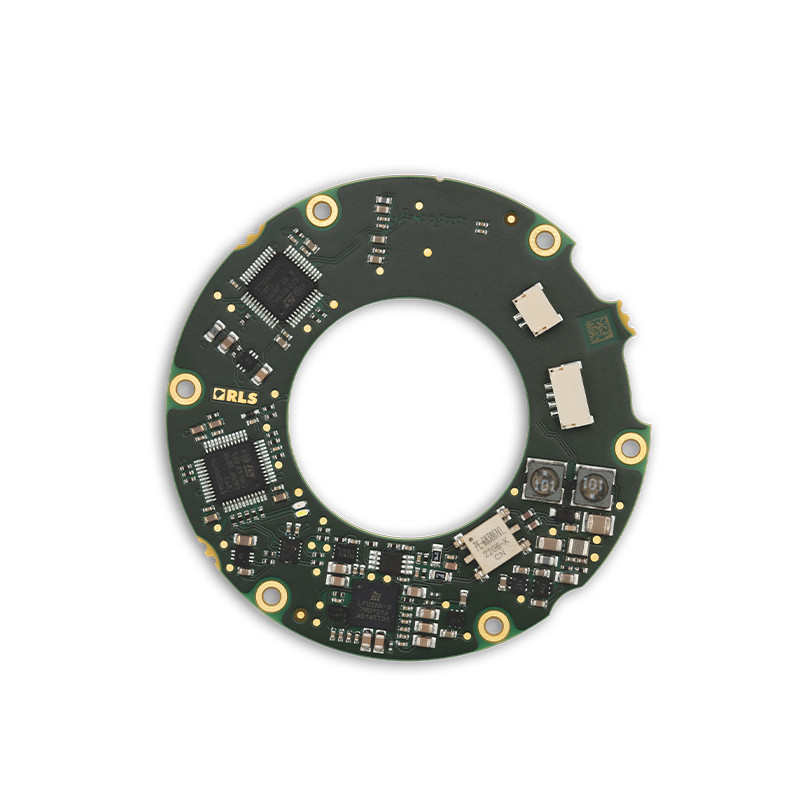

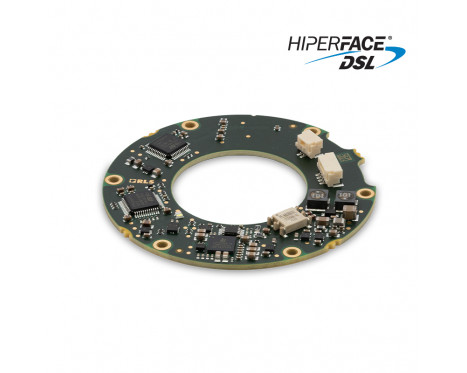

AksIM-4 is a non-contact, high performance off-axis absolute rotary encoder. It is designed for integration into applications with limited space. A hollow ring, true absolute functionality and Hiperface DSL protocol make this encoder suitable for compact servo motor applications. The AksIM-4 encoder system consists of an axially magnetised ring and a readhead.
特徵
- True absolute system
- Custom magnetic sensor ASIC
- Self-calibration option
- Low profile, non contact
優點
- Reduced wiring complexity
- High speed data transmission
- Cost efficient
- Possibility for more compact motor design
Request a sample
產品資料
系統
編碼器類型
真正絕對式編碼器
讀取類型
旋轉, 軸向
最大解析度
20 位元
系統精度
最高 ±0.005°
電氣
供應電壓
7 V 到 12 V (連接器上)
電流消耗
標準值 85 mA（12 V）- 在連接器處，最大 1.4 W
機械
可用磁環尺寸（外徑）
53 mm, 80 mm
環境
工作及存放條件
–40 °C 至 +105 °C
