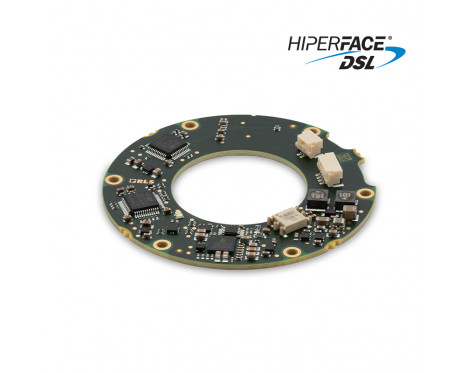

AksIM-4™ HIPERFACE DSL®
Off-axis Rotary Absolute Magnetic Encoder

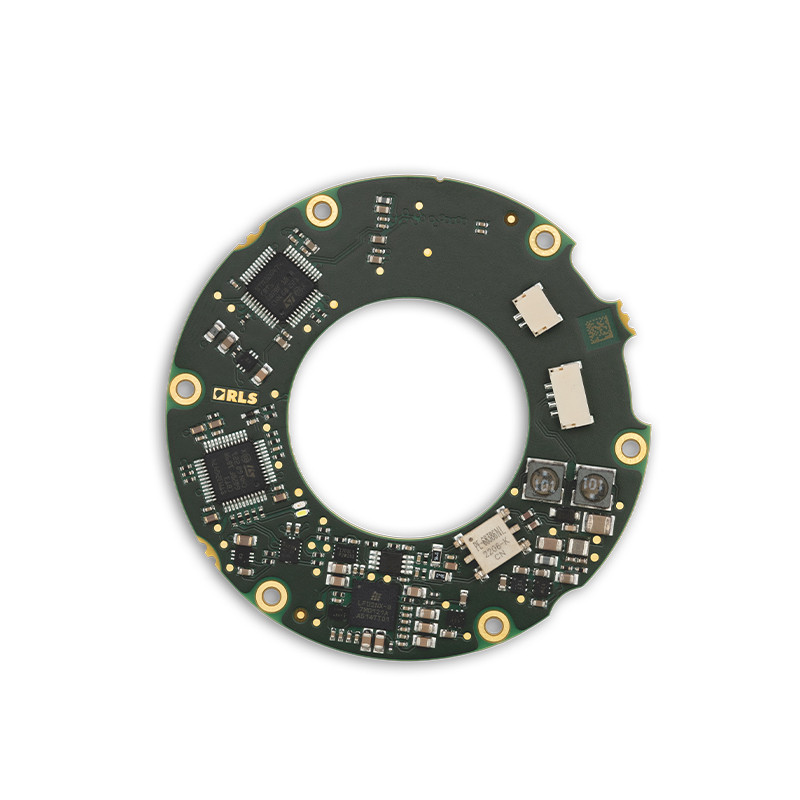

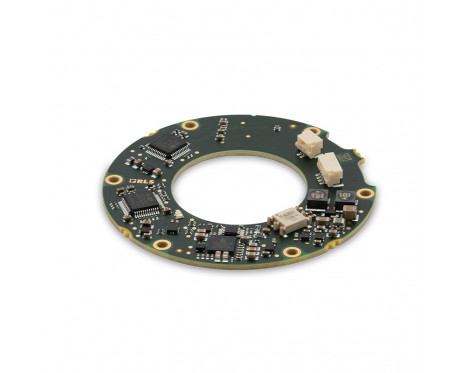

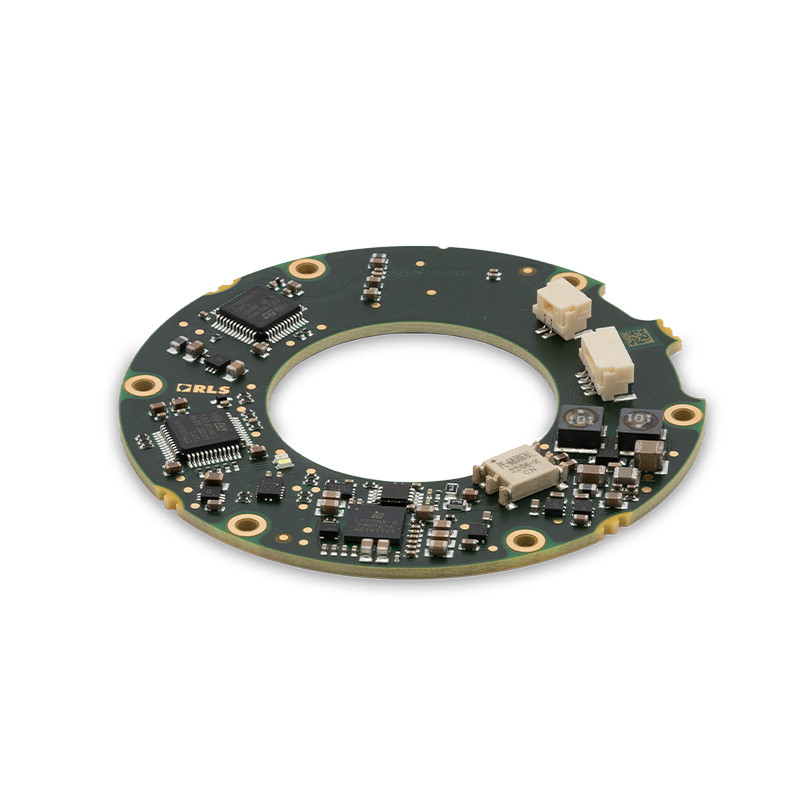

AksIM-4™ is a non-contact, high performance off-axis absolute rotary encoder. It is designed for integration into applications with limited space. A hollow ring, true absolute functionality and Hiperface DSL protocol make this encoder suitable for compact servo motor applications. The AksIM-4 encoder system consists of an axially magnetised ring and a readhead.
Features & Benefits
- True absolute system
- Custom magnetic sensor ASIC
- Self-calibration option
- Low profile, non contact
- Reduced wiring complexity
- High speed data transmission
- Cost efficient
- Possibility for more compact motor design
Product data
System
- Encoder type
- True absolute encoder
- Reading type
- Axial, Rotary
- Max. resolution
- 20 bit
- System accuracy
- Up to ±0.005°
Electrical
- Supply voltage
- 7 V to 12 V (at the connector)
- Current consumption
- Typ. 85 mA at 12 V - at the connector, max 1.4 W
Mechanical
- Available ring sizes (outer diameter)
- 53 mm, 80 mm
Environmental
- Operating and storage temperature
- -40 °C to +105 °C
