概述

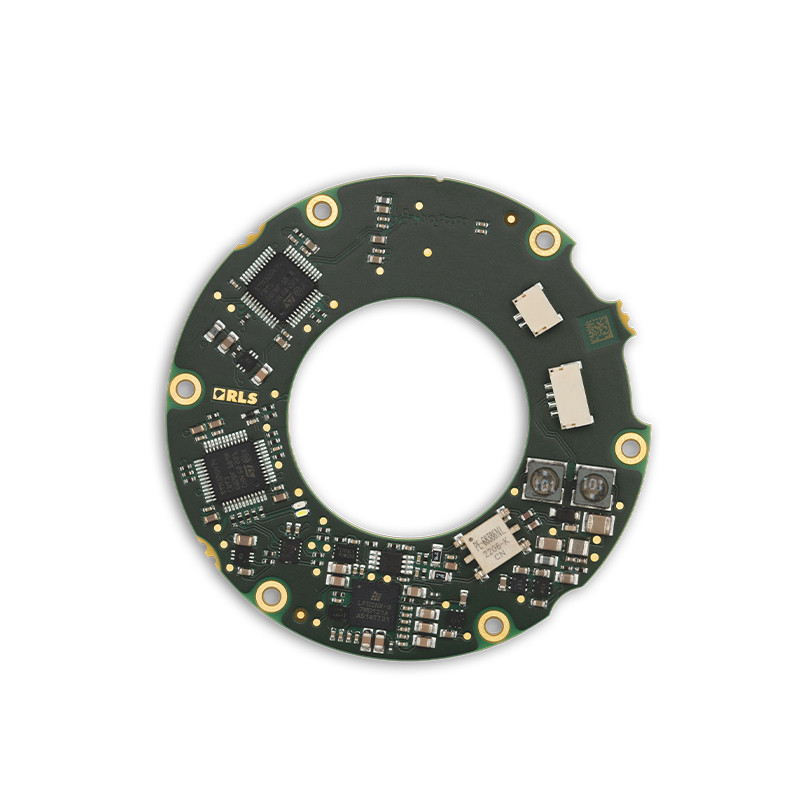

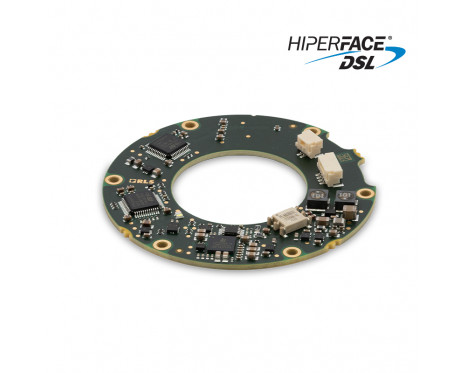

AksIM-4 is a non-contact, high performance off-axis absolute rotary encoder. It is designed for integration into applications with limited space. A hollow ring, true absolute functionality and Hiperface DSL protocol make this encoder suitable for compact servo motor applications. The AksIM-4 encoder system consists of an axially magnetised ring and a readhead.
特性
- True absolute system
- Custom magnetic sensor ASIC
- Self-calibration option
- Low profile, non contact
优点
- Reduced wiring complexity
- High speed data transmission
- Cost efficient
- Possibility for more compact motor design
Request a sample
产品数据
系统
编码器类型
真正的绝对式编码器
读取类型
旋转, 轴向
最大分辨率
20位
系统精度
最高达 ±0.005°
电气
电源电压
7 V 至 12 V 插头处）
电流消耗
典型值85 mA（12 V）- 在连接器处，最大1.4 W
机械
可用磁环大小（外径）
53 mm, 80 mm
环境
工作和存储温度
-40 °C至+105 °C
