개요

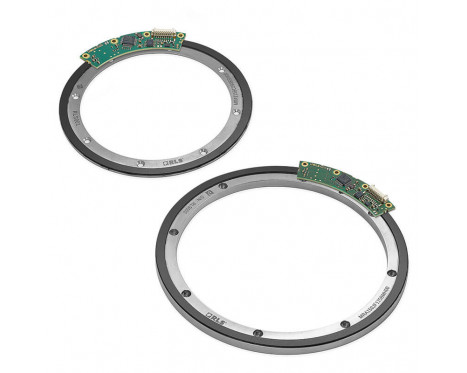

AksIM-4 is a non-contact, high performance off-axis absolute rotary encoder designed for integration into applications with limited space and systems with larger diameters. A hollow ring, true absolute functionality and high-speed operation make this encoder suitable for many applications.

The AksIM-4 encoder system consists of an axially magnetised ring and a readhead. The encoders are equipped with BiSS communication interface and offer binary resolutions up to 21 bits per revolution.

기능

  • True absolute system
  • Custom magnetic sensor ASIC
  • Self-calibration option
  • Resolution up to 21 bits

이점

  • High speed operation
  • Low profile, non-contact
  • Integrated status LED
  • High repeatability


Contact us

제품 데이터

시스템

엔코더 유형
트루 앱솔루트 엔코더
판독 유형
로터리, 축 방향
분해능
20 bit and 21 bit
자기이력 현상
분해능 단위 미만

전기

공급 전압
4.5 V ~ 5.5 V(커넥터에서)
Set-up time
100 ms(공급 전압이 범위 안에 들어오면 첫 데이터가 준비됨), 최악의 경우: 200 ms

기계

Available ring sizes (inner diameter)
90 mm, 125 mm

환경

습도
70 %(비응축)
작동 및 보관 온도
-40 °C ~ +105 °C
