AksIM-4 is a non-contact, high performance off-axis absolute rotary encoder designed for integration into applications with limited space and systems with larger diameters. A hollow ring, true absolute functionality and high-speed operation make this encoder suitable for many applications.

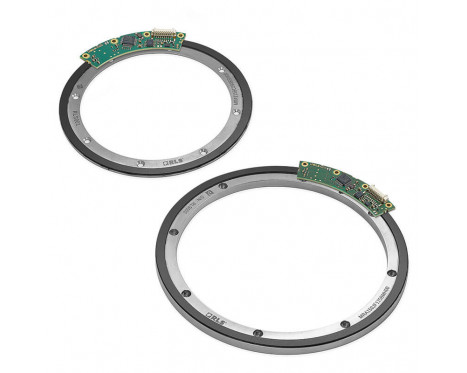

The AksIM-4 encoder system consists of an axially magnetised ring and a readhead. The encoders are equipped with BiSS communication interface and offer binary resolutions up to 21 bits per revolution.

Merkmale

  • True absolute system
  • Custom magnetic sensor ASIC
  • Self-calibration option
  • Resolution up to 21 bits

Vorteile

  • High speed operation
  • Low profile, non-contact
  • Integrated status LED
  • High repeatability


Contact us

Produktdaten

System

Gebertyp
Vollabsoluter Encoder
Art der Messung
Axial, Rotativ
Auflösung
20 bit and 21 bit
Hysterese
Geringer als eine Einheit der Auflösung

Elektrisch

Versorgungsspannung
4,5 V bis 5,5 V (am Steckverbinder)
Set-up time
100 ms (Bereitstellung der ersten Daten, wenn Spannungsversorgung im spezifizierten Bereich liegt), langsamste Abfragerate: 200 ms

Mechanisch

Available ring sizes (inner diameter)
90 mm, 125 mm

Umwelt

Luftfeuchtigkeit
bis 70 % nicht kondensierend
Betriebs- und Lagertemperatur
-40 °C bis +105 °C
