概觀

AksIM-4 is a non-contact, high performance off-axis absolute rotary encoder designed for integration into applications with limited space and systems with larger diameters. A hollow ring, true absolute functionality and high-speed operation make this encoder suitable for many applications.

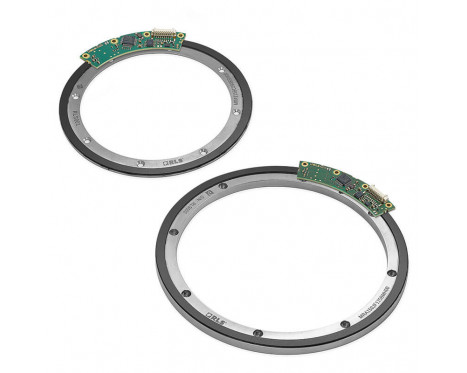

The AksIM-4 encoder system consists of an axially magnetised ring and a readhead. The encoders are equipped with BiSS communication interface and offer binary resolutions up to 21 bits per revolution.

特徵

  • True absolute system
  • Custom magnetic sensor ASIC
  • Self-calibration option
  • Resolution up to 21 bits

優點

  • High speed operation
  • Low profile, non-contact
  • Integrated status LED
  • High repeatability


Contact us

產品資料

系統

編碼器類型
真正絕對式編碼器
讀取類型
旋轉, 軸向
解析度
20 bit and 21 bit
遲滯
少於解析度單位

電氣

供應電壓
4.5 V 到 5.5 V (連接器上)
Set-up time
100 ms(電源電壓落在範圍內之後,資料初次準備就緒的時間),最壞情況:200 ms

機械

Available ring sizes (inner diameter)
90 mm, 125 mm

環境

濕度
至 70%(允許冷凝)
工作及存放條件
–40 °C 至 +105 °C
