概述

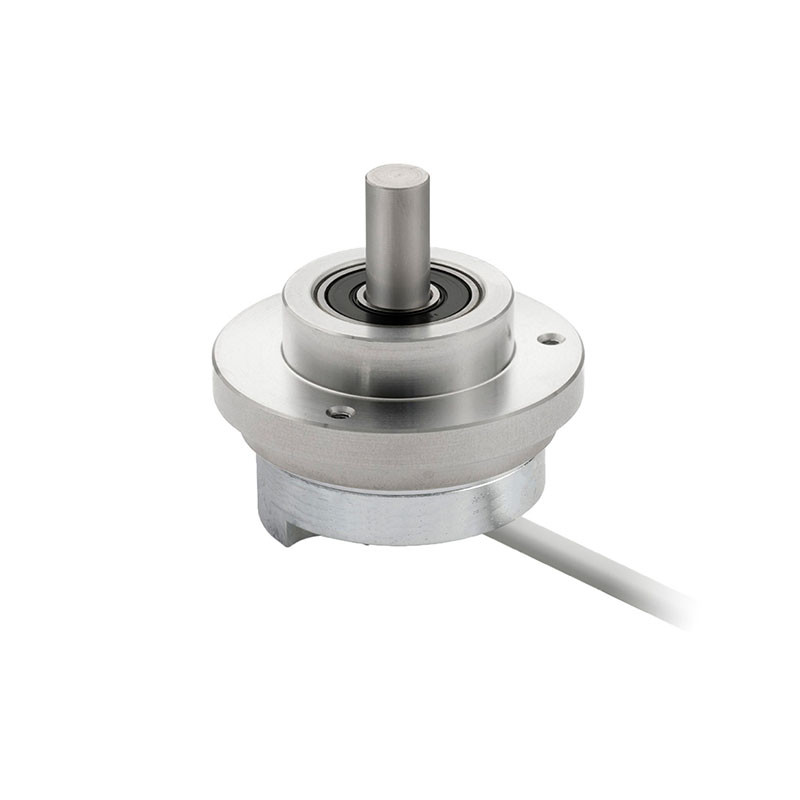

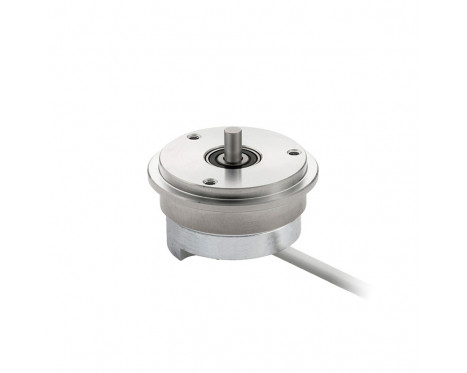

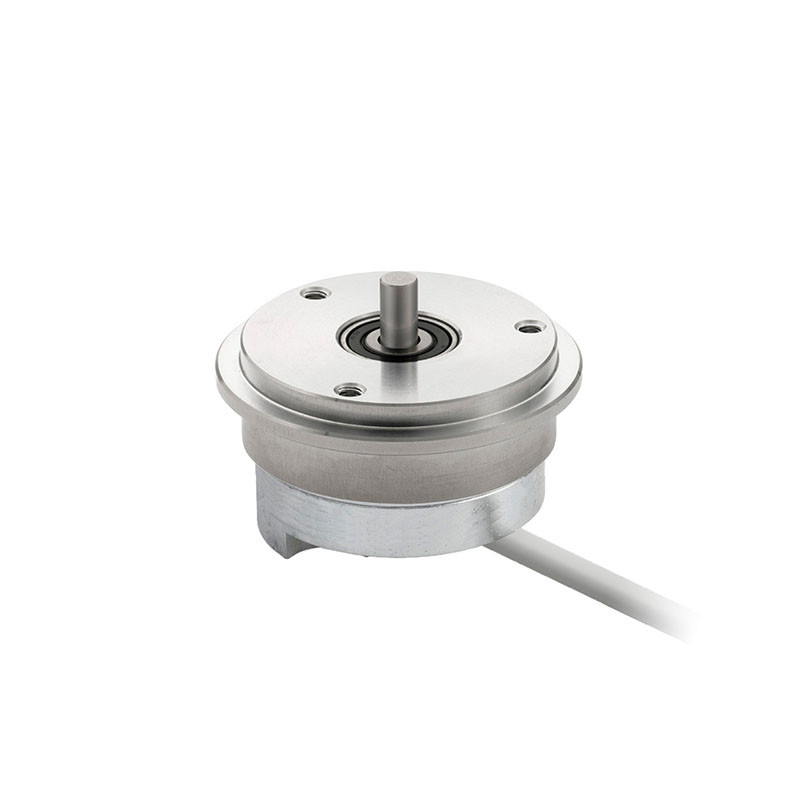

The RE58 is a robust industrial standard rotary magnetic encoder consisting of two parts: the RM44 magnetic encoder and various
58 mm flanges.

特性

  • Industry standard absolute, incremental and analogue output options
  • Accuracy to ±0.3°
  • High reliability from proven non-contact encoder technology

优点

  • Robust modular design
  • Easy to install
  • Excellent price-performance
询价 规格手册

产品数据

系统

编码器类型
增量式, 绝对式
最大分辨率
13位
系统精度
Typ. ± 0.3°

电气

电源电压
5 V or 8 V to 26 V (depending on output)
Set-up time
100 ms (first data ready after supply voltage is in range), worst case: 200 ms
电流消耗
Max. 50 mA (depending on output)
连接
散线
输出负载
Max. 30 mA (depending on output)

环境

IP保护
IP64, IP68
工作和存储温度
–40 °C to +125 °C (IP64), –40 °C to +85 °C (IP68)
更多信息请参阅规格手册
