Overview

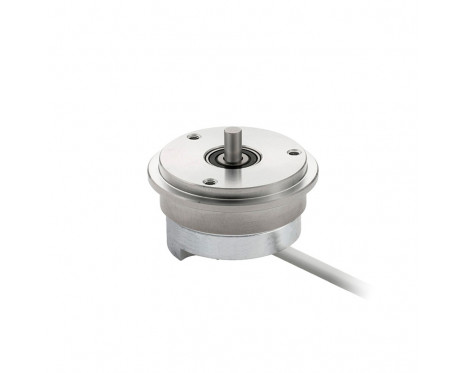

The RE58 is a robust industrial standard rotary magnetic encoder consisting of two parts: the RM44 magnetic encoder and various
58 mm flanges.

Features

  • Industry standard absolute, incremental and analogue output options
  • Accuracy to ±0.3°
  • High reliability from proven non-contact encoder technology

Benefits

  • Robust modular design
  • Easy to install
  • Excellent price-performance
Request for quote Data sheet

Product data

System

Encoder type
Absolute, Incremental
Max. resolution
13 bit
System accuracy
Typ. ± 0.3°

Electrical

Supply voltage
5 V or 8 V to 26 V (depending on output)
Set-up time
100 ms (first data ready after supply voltage is in range), worst case: 200 ms
Current consumption
Max. 50 mA (depending on output)
Connection
Flying lead
Output load
Max. 30 mA (depending on output)

Environmental

IP protection
IP64, IP68
Operating and storage temperature
–40 °C to +125 °C (IP64), –40 °C to +85 °C (IP68)
More info in Data sheet
