개요

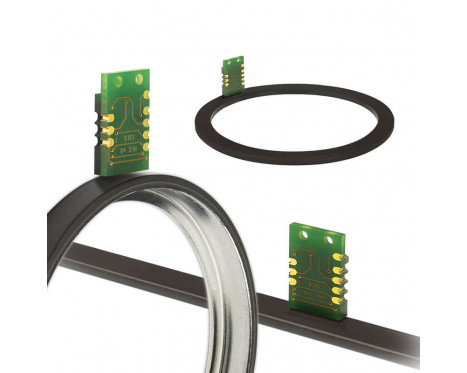

RLC2HD는 PCB 센서와 마그네틱 스케일 또는 링으로 구성된 PCB 형태의 증분형 엔코더 센서 시스템입니다. 임베디드 모션 제어 분야에서 공간이 협소한 곳의 위치 제어 루프 피드백 요소로 사용할 목적으로 설계되었습니다.
기능
- 증분형 직각 위상 TTL 출력 신호 A, B, Z
- 주기적, 양방향 인덱스 출력
- 최대 분해능 0.244 µm
이점
- 초소형 디자인
- 고속 작동
- RoHS 준수
제품 데이터
시스템
전기
기계
환경
Speed calculator
Calculate maximum speed and determine product parameters based on your application.
응용 분야
다운로드
