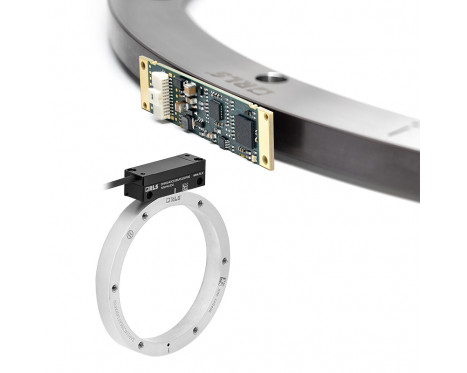

Artos™ Rotary
Absolute Magnetic Encoder System
Artos™ Rotary is a versatile absolute magnetic encoder system designed for precise angle and velocity control loops. This true-absolute system provides immediate position information immediately after power-on via serial protocols, eliminating the need for homing cycles. It is available in two form factors: a compact Board Level (PCB-A) design for space-constrained integrations and a Robust Enclosed housing for harsh industrial environments.
특징 및 이점
- Instant Start-up: True-absolute technology ensures position data is valid immediately upon power-on.
- Intelligent Self-Calibration: Built-in algorithms automatically compensate for mounting eccentricity to optimize system accuracy.
- High-Speed Operation: Supports rotational speeds up to 30,000 rpm.
- Responsive Control: Features low position latency of less than 1 µs and a high internal refresh rate of 91 kHz.
- Flexible Installation: Large installation tolerances and an integrated setup LED simplify the mounting process.
제품 데이터
시스템
- 엔코더 유형
- Rotary absolute
- 판독 유형
- 원심 방향
- 출력
- BiSS-C, SSI
- 최대 분해능
- Up to 23 bits (depends on the ring size)
- 호환성
- SAR ring (SAR057 to SAR478)
- 최대 회전 속도
- 최대 30,000 RPM
전기
- 공급 전압
- 5 V to 30 V
환경
- 작동 및 보관 온도
- -40 °C ~ +85 °C
