概要

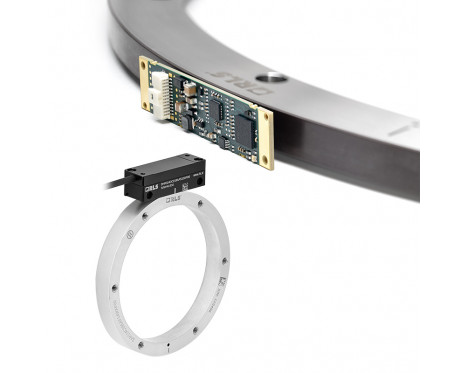

Artos™ Rotary is a versatile absolute magnetic encoder system designed for precise angle and velocity control loops. This true-absolute system provides immediate position information immediately after power-on via serial protocols, eliminating the need for homing cycles. It is available in two form factors: a compact Board Level (PCB-A) design for space-constrained integrations and a Robust Enclosed housing for harsh industrial environments.
メリット
- Instant Start-up: True-absolute technology ensures position data is valid immediately upon power-on.
- Intelligent Self-Calibration: Built-in algorithms automatically compensate for mounting eccentricity to optimize system accuracy.
- High-Speed Operation: Supports rotational speeds up to 30,000 rpm.
- Responsive Control: Features low position latency of less than 1 µs and a high internal refresh rate of 91 kHz.
- Flexible Installation: Large installation tolerances and an integrated setup LED simplify the mounting process.
構成して購入
Configure
データシート
製品データ
システム
エンコーダタイプ
ロータリアブソリュート
読取りタイプ
径方向
出力
BiSS-C, SSI
最高分解能
最高 23bit (リングサイズに依存)
互換性
SAR リング (SAR057～SAR478)
最大回転速度
最高 30,000rev/min
電気
供給電圧
5V～30V
環境
IP 保護
IP67
動作時/保管時温度
-40℃～+85℃
速度算出ツール
最大速度を計算し、用途に基づいて製品パラメータを決定します。
