Übersicht

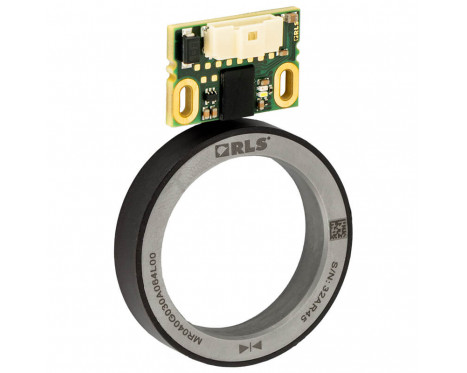

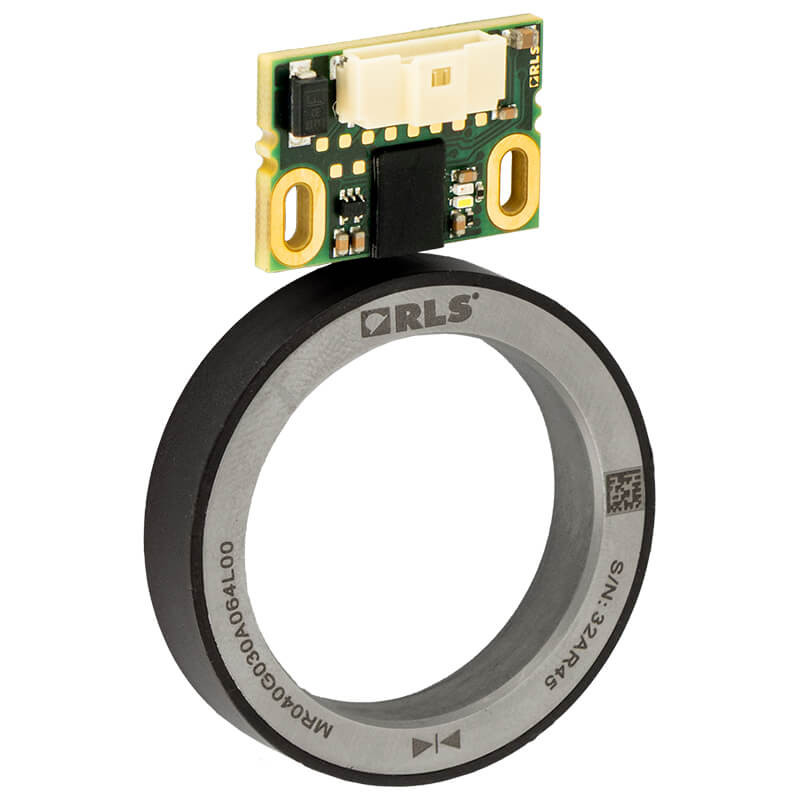

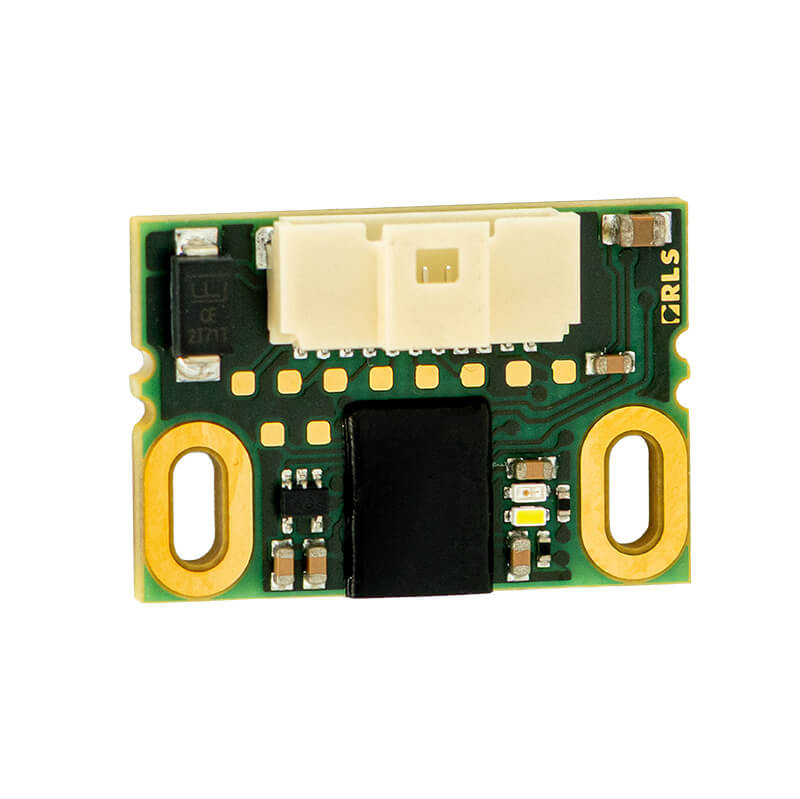

RLC2IA is a PCB-level encoder with a 24 V incremental push-pull output signal.
Encoder system consists of a PCB sensor and a magnetic scale or ring. It is designed for embedded motion control applications as a position control loop element in applications with limited space. It guarantees a highly repeatable position measurement under wide mounting tolerances and temperature ranges.
Merkmale
- Incremental push-pull output (24 V)
- Unique or periodic bidirectional index impulse
- High system accuracy up to ±10 μm
- High threshold logic (HTL)
Vorteile
- For use with scales, radial and axial rings
- Non-contact and wear-free measuring principle
- Miniature design
- Status indicator LED
Request a quote
Produktdaten
System
Gebertyp
Inkrementell
Art der Messung
Axial, Linear, Radius
Ausgangssignale
Inkrementell, Push-Pull
Max. Auflösung
13 Bit
Genauigkeit
Up to ±10 µm
Elektrisch
Versorgungsspannung
24 V ±10 % (on the readhead)
Stromaufnahme
< 10.5 mA without 1000 Ω termination, < 85 mA with 1000 Ω termination
Umwelt
Betriebs- und Lagertemperatur
-40 °C bis +105 °C
