AS10
Absolutmaßband

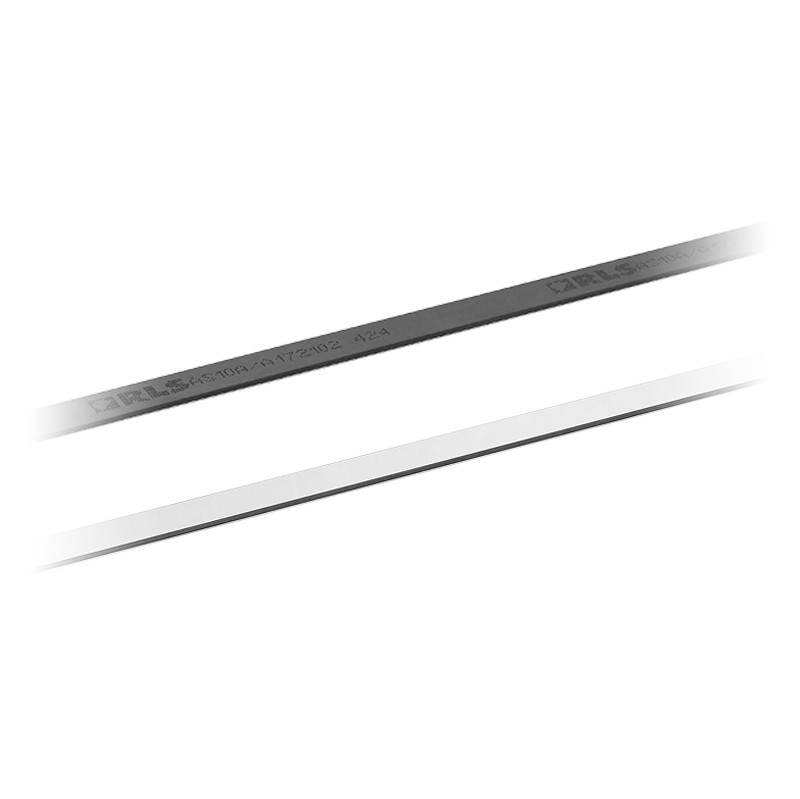

The robust AS absolute magnetic scales consist of a stainless steel carrier and an elastomer-bonded ferrite. The elasto-ferrite layer is magnetised with an incremental magnetic pattern and a pseudo-random code for reliable absolute position sensing.
Merkmale & Vorteile
- Excellent resistance to dirt, dust and humidity
- Easy installation with adhesive tape, end clamps or track section
- Optional protective cover foil for heavy duty applications
- Partial arc application possibility
- Easy installation
- Track system compatible
- Up to 16,3 m length
Produktdaten
System
- Genauigkeit
- ± 30 μm/m bei 0,2 mm Abtastkopfabstand
- Polteilung
- 2 mm
- Max. length for AS scale
- 16,3 m
Umwelt
- Temperatur
- Betrieb: -40 °C bis +100 °C, Lagerung: -40 °C bis +60 °C
