概述

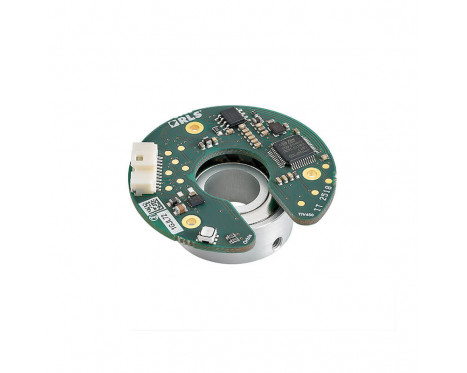

Orbis™ is a non-contact through-hole rotary encoder designed for applications where a typical OnAxis encoder cannot be mounted at the end of the rotating shaft due to space constraints.
Orbis™ through-hole encoder system consists of a readhead and diametrically magnetised permanent magnet ring.
Output signals are provided in industry standard absolute, incremental, and analogue sinusoidal (sin/cos) signals.
For BISS-C, SPI, SSI, Asynchronous serial and PWM communication please refer to BRD01 Data sheet.
For Analogue sin/cos, commutation and incremental outputs please refer to BRD14 Data sheet.
优点
- Output formats: BiSS-C, SSI, SPI, Sin/Cos, ABZ, UVW, PWM and Asynchronous serial
- Through-hole design enables its mounting anywhere along the shaft
- Multi-turn counter option
- Status LED
- Optional self-calibration after assembly
- Wide installation tolerances
- Built-in self-diagnostics
- Zeroing function
- High speed operation
配置并购买
配置
规格手册
产品数据
系统
读取类型
轴向
输出
ABZ, BiSS-C, PWM, sin/cos, SPI, SSI, UART, UVW
最大分辨率
14位
精度
自校准后 ±0.25°
电气
电源电压
5 V ?10 %
电流消耗
典型值为65 mA（无输出负载）
机械
磁励体材料
阳极氧化铝
磁体材料
带镍铜镍保护层的钕
Available ring sizes (inner diameter)
12mm, 16mm, 22mm, 30mm
环境
外部磁场
读数头上方最大±10 mT（DC或AC）
湿度
0至70%非冷凝
工作和存储温度
–40 °C至+125 °C (with connector)
