概述

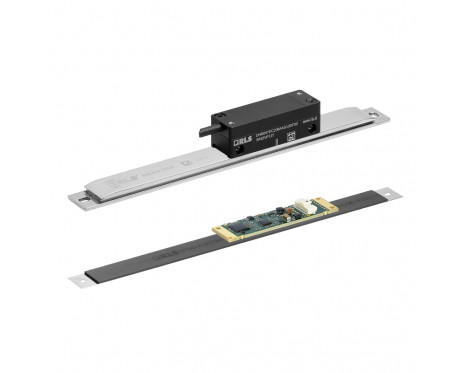

Artos™ Linear provides high-accuracy absolute position feedback for motion control systems requiring extreme speeds and long measurement ranges. Supporting both solid and flexible magnetic scales, the system can reach measurement lengths up to 32 m. Whether integrated as a lightweight Board Level sensor or a Sealed Readhead, Artos Linear maintains reliable performance in environments ranging from medical laboratories to heavy-duty machine tools.
优点
- Superior Accuracy: Compatible with SAS19 solid scales offering linear accuracy up to ±6 µm/m.
- Extreme Tracking Speeds: Engineered for highly dynamic control loops with linear speeds up to 20 m/s.
- Versatile Range: Supports measurement lengths from short-travel solid scales up to 32 m flexible scales.
- High Data Freshness: An internal refresh rate of 91 kHz ensures precise control at any speed.
- Industrial Resilience: The fully welded scale variants and enclosed readheads offer IP67 protection against dust, oils, and coolants.
配置并购买
配置
规格手册
产品数据
系统
编码器类型
直线绝对式
输出
BiSS-C, SSI
分辨率
Up to ~0.100 μm
兼容性
DS19绝对式磁栅尺, SAS19 solid absolute scales
电气
电源电压
5 V至30 V
环境
IP保护
IP67
工作和存储温度
-40 °C至+85 °C
速度计算器
计算最大速度并根据您的应用确定产品参数。
