概要

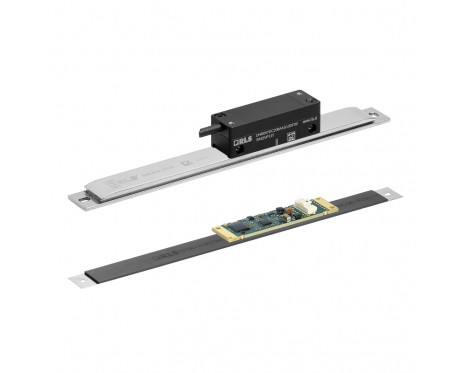

Artos™ Linear provides high-accuracy absolute position feedback for motion control systems requiring extreme speeds and long measurement ranges. Supporting both solid and flexible magnetic scales, the system can reach measurement lengths up to 32 m. Whether integrated as a lightweight Board Level sensor or a Sealed Readhead, Artos Linear maintains reliable performance in environments ranging from medical laboratories to heavy-duty machine tools.
メリット
- Superior Accuracy: Compatible with SAS19 solid scales offering linear accuracy up to ±6 µm/m.
- Extreme Tracking Speeds: Engineered for highly dynamic control loops with linear speeds up to 20 m/s.
- Versatile Range: Supports measurement lengths from short-travel solid scales up to 32 m flexible scales.
- High Data Freshness: An internal refresh rate of 91 kHz ensures precise control at any speed.
- Industrial Resilience: The fully welded scale variants and enclosed readheads offer IP67 protection against dust, oils, and coolants.
構成して購入
Configure
データシート
製品データ
システム
エンコーダタイプ
リニアアブソリュート
出力
BiSS-C, SSI
分解能
Up to ~0.100 μm
互換性
DS19 磁気アブソリュートスケール, SAS19 solid absolute scales
電気
供給電圧
5V～30V
環境
IP 保護
IP67
動作時/保管時温度
-40℃～+85℃
速度算出ツール
最大速度を計算し、用途に基づいて製品パラメータを決定します。
