概要

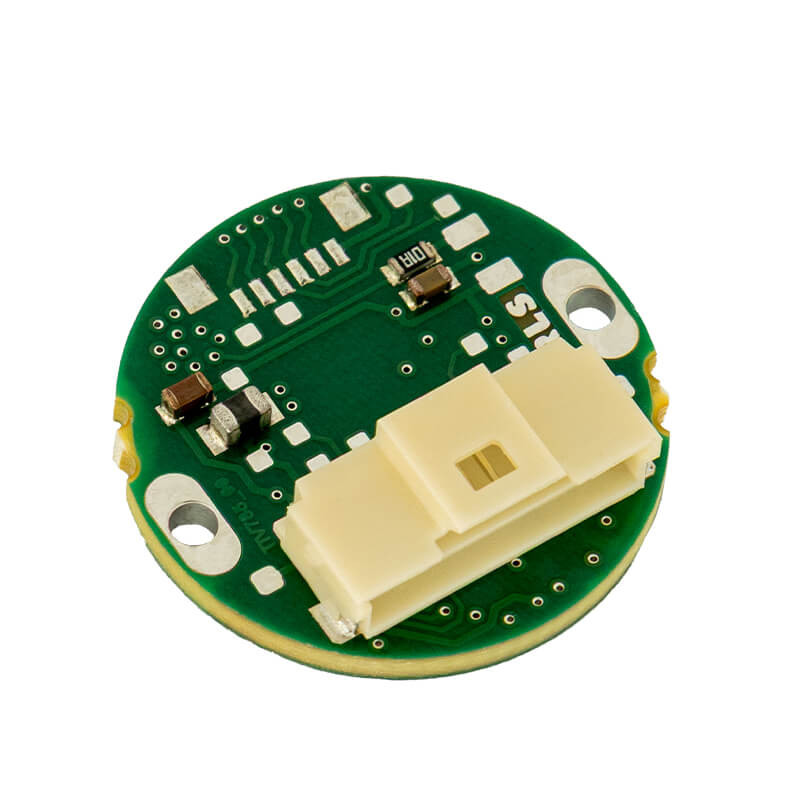

The RTB20 high-resolution magnetic encoder features 18-bit resolution in an ultra-compact Ø20 mm encoder board, delivering exceptional precision in the smallest footprint. Its compact and lightweight design makes it ideal for applications such as printing, industrial automation, motor control and instrumentation.
機能
- Based on TMR sensor
- Incremental resolution up to 18 bit
- UVW signals for commutation up to 256 pole pairs
- Zeroing function
メリット
- Simple and fast installation
- Non-contact, frictionless design
- Miniature design, Ø20 mm
- Long-term reliability
- No hysteresis
Request a sample
製品データ
システム
最高速度
30,000rev/min
電気
供給電圧
Vdd=5V±5%
環境
温度
動作時: -40℃～+105 (コネクタにより制限)
