Übersicht

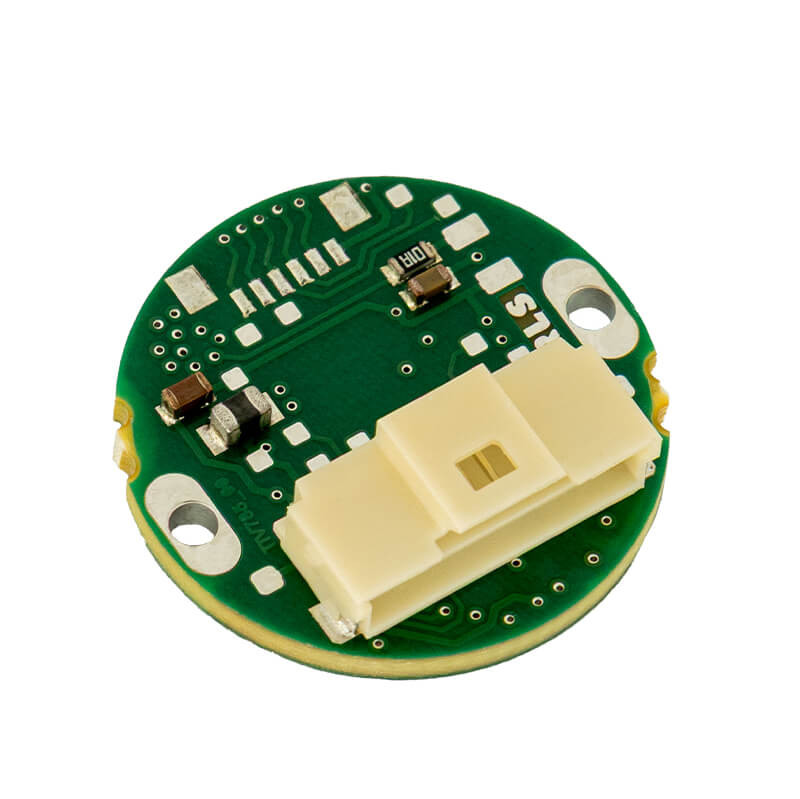

The RTB20 high-resolution magnetic encoder features 18-bit resolution in an ultra-compact Ø20 mm encoder board, delivering exceptional precision in the smallest footprint. Its compact and lightweight design makes it ideal for applications such as printing, industrial automation, motor control and instrumentation.
Merkmale
- Based on TMR sensor
- Incremental resolution up to 18 bit
- UVW signals for commutation up to 256 pole pairs
- Zeroing function
Vorteile
- Simple and fast installation
- Non-contact, frictionless design
- Miniature design, Ø20 mm
- Long-term reliability
- No hysteresis
Request a sample
Produktdaten
System
Maximale Geschwindigkeit
30.000 U/min
Elektrisch
Versorgungsspannung
Vdd = 5 V ±5%
Umwelt
Temperatur
Betrieb: -40 °C bis +105 °C (durch Stecker begrenzt)
