概觀

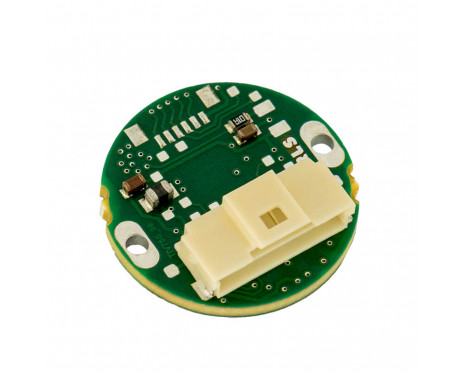

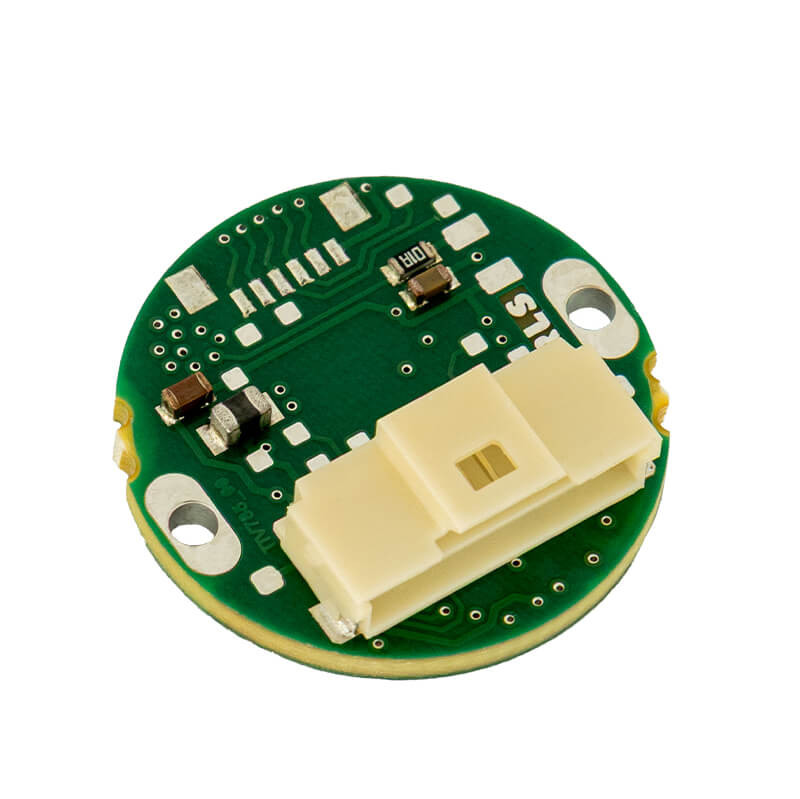

The RTB20 high-resolution magnetic encoder features 18-bit resolution in an ultra-compact Ø20 mm encoder board, delivering exceptional precision in the smallest footprint. Its compact and lightweight design makes it ideal for applications such as printing, industrial automation, motor control and instrumentation.
特徵
- Based on TMR sensor
- Incremental resolution up to 18 bit
- UVW signals for commutation up to 256 pole pairs
- Zeroing function
優點
- Simple and fast installation
- Non-contact, frictionless design
- Miniature design, Ø20 mm
- Long-term reliability
- No hysteresis
Request a sample
產品資料
系統
最高速度
30,000 RPM
電氣
供應電壓
Vdd = 5 V ±5%
環境
溫度
工作溫度：-40 °C 至 +105 °C（受連接器限制）
