Overview

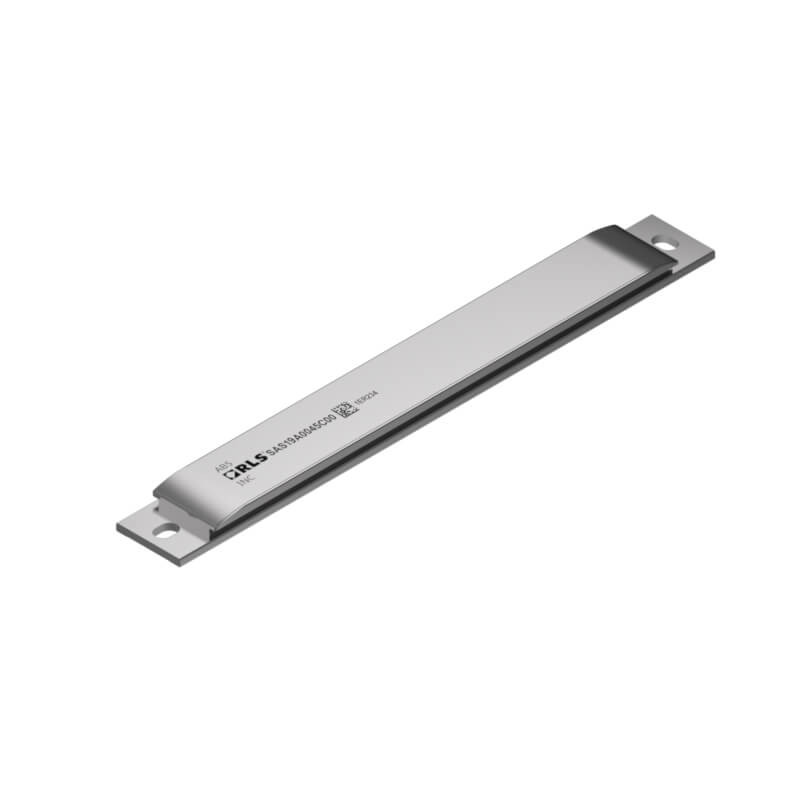

The robust absolute magnetic scale consists of a stainless steel carrier and an elastomer-bonded ferrite. The SAS19 is a solid scale available in predefined lengths. It can be fully enclosed making it suitable for harsh environments where oils or coolants are present. It is designed for compatibility with Artos readheads.

Features

  • Scale length up to 1.36 m
  • Fully enclosed IP67
  • Compatible with Artos readheads

Benefits

  • Excellent resistance to oils, coolants and grease
  • Easy installation
Configure and Buy Configure Data sheet

Product data

System

Accuracy
±6 μm/m at 0.2 mm ride height
Max. scale length
1.36 m

Environmental

Temperature
Operating: –40 °C to +100 °C, Storage: –40 °C to +75 °C
More info in Data sheet
