RM16
Super Small Incremental and Absolute Encoder

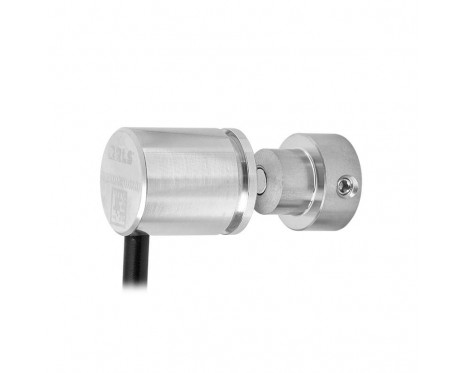

The RM16 is a compact, sealed, miniature, high speed rotary magnetic encoder designed for use in space limited applications. The encoder body is just 16 mm in diameter in aluminum housing.
Features & Benefits
- Super small size – 16 mm diameter body
- 5 V power supply versions
- Industry standard incremental, SSI and linear voltage output formats
- Non-contact, frictionless design
- High speed operation up to 30,000 rpm
- Accuracy ±0.5°
- RoHS compliant
Product data
System
- Encoder type
- Absolute, Incremental
- Reading type
- Rotary
- Accuracy
- ±0.5°
- Maximum speed
- 30,000 RPM
- Hysteresis
- 0.17°
Electrical
- Supply voltage
- 5 V
Mechanical
- Encoder housing material
- Aluminium
- Mass
- 28 g (with 1m long cable)
- Max. cable length
- 10 m
Environmental
- Operating and storage temperature
- -40 °C to +125 °C
Applications
System parts
Downloads
- pdfData sheet: RE16/RM16 Super Small Incremental and Absolute Encoders (RE16D01)
- zip3D model: RM16 encoder
- zip3D model: ACC072 Installation Accessory set for RM16 & RE16
- zip3D model: RMA Magnet for integration onto shaft
- zip3D model: RMH magnet
- zip3D model: RMM Magnet for direct recessing in non-ferrous shafts
- pdfEC / UK / NI Declaration of conformity: RM/RE16
