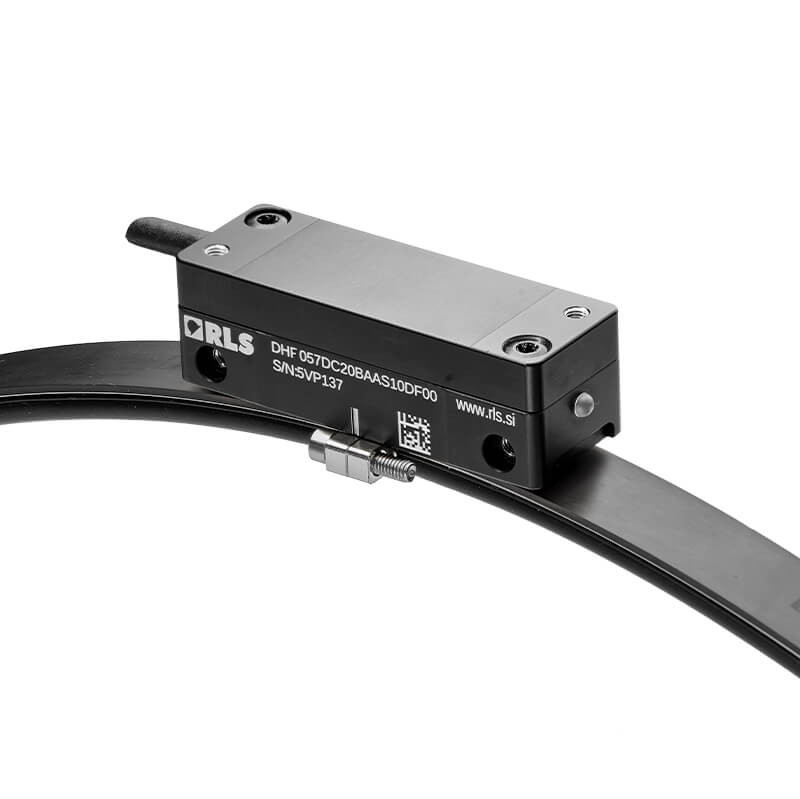

Artos™ DHF
Linear Absolute Magnetic Encoder System
Artos™ is an absolute magnetic encoder system designed for motion control applications as a feedback element for angle/position and velocity control loops. A highly reliable measurement principle and processing provide low position latency, high resolution and angular/linear velocity. The robust design protects the readhead from liquid ingress and high temperatures, so it remains undamaged even in extremely contaminated and hot environments.
Features & Benefits
- True absolute system
- High accuracy and resolution
- Suitable for highly dynamic control loops
- Robust design and great EMC compatibility
- SSI and BiSS bidirectional communication protocols
- Compatible with FlexAB
- Wide installation tolerances
- IP67 protection class
Product data
System
- Encoder type
- Absolute
- Outputs
- BiSS-C bidirectional
- Resolution
- Up to 0.1 μm
- Compatibility
- FlexAB magnetic system
Electrical
- Supply voltage
- 5 V to 30 V
Environmental
- Operating and storage temperature
- -40 °C to +85 °C
