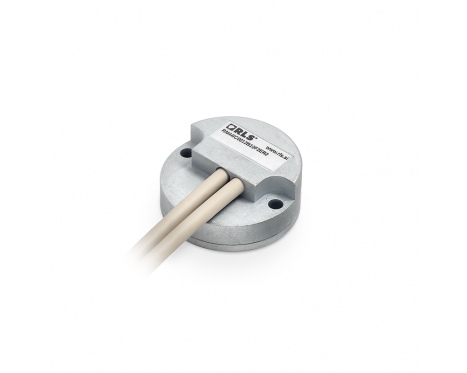

The RM44 / RM58 is a non-contact magnetic encoder with two independent outputs and no common connections between two devices. The redundancy is realized only on the sensor and driver side. The encoder uses only one magnet (D7xH4 mm). The encoders are suitable for demanding applications that require a higher level of safety.
Merkmale
- Accuracy to ±0.5°
- Dual incremental outputs
- Resolution up to 4,096 cpr
- 5 V power supply versions
- High speed
Vorteile
- Redundancy for safety applications
- Industry standard output formats
- Excellent degree of protection to IP68
- For high volume OEM applications
Konfigurieren und kaufen
Konfigurieren
Datenblatt
Produktdaten
System
Gebertyp
Incremental (for other outputs contact RLS)
Art der Messung
Rotativ
Max. Auflösung
12 Bit
Genauigkeit
Bis zu ±0,5°
Maximale Geschwindigkeit
30.000 U/min
Elektrisch
Versorgungsspannung
5 V
Stromaufnahme
Typ. 30mA for each encoder
Ausgangssignale
Encoder 1: A B Z, RS422 line driver
Encoder 2: A B Z, RS422 line driver
Encoder 2: A B Z, RS422 line driver
Mechanisch
Material des Drehgebergehäuses
Zamak
Material des Magneten
SmCo (Sm2Co17), NiCuNi Beschichtung
Max. Kabellänge
10 m
Umwelt
EMV-Konformität
EN 61326
IP-Schutz
Up to IP68
Temperatur
Operating: RM: –40 °C to +125 °C (IP64), RM: –40 °C to +85 °C (IP68)
