概觀

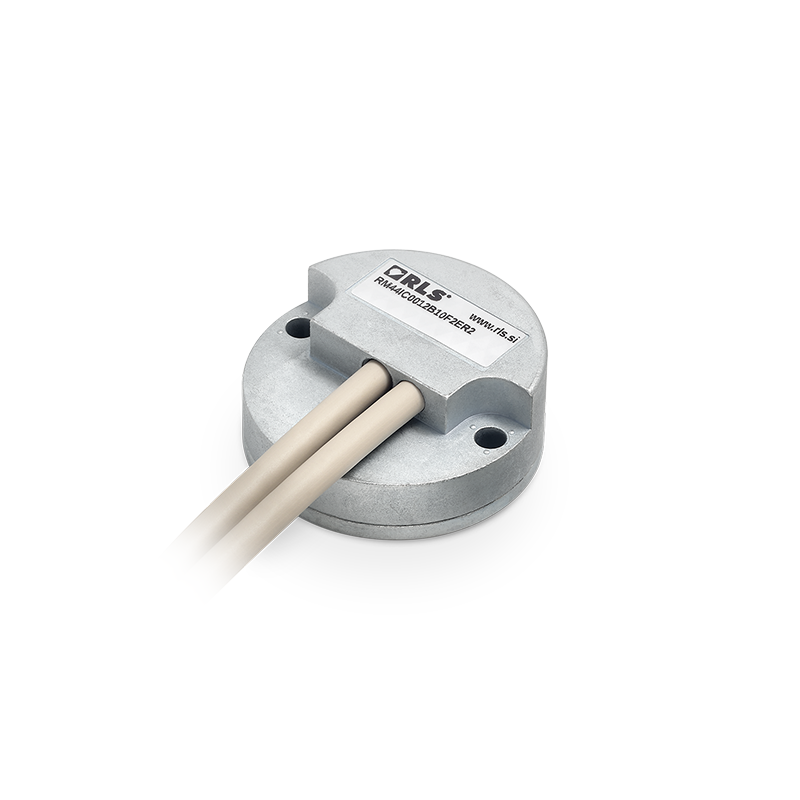

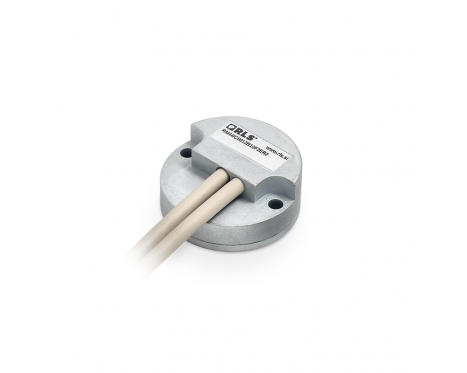

The RM44 / RM58 is a non-contact magnetic encoder with two independent outputs and no common connections between two devices. The redundancy is realized only on the sensor and driver side. The encoder uses only one magnet (D7xH4 mm). The encoders are suitable for demanding applications that require a higher level of safety.
特徵
- Accuracy to ±0.5°
- Dual incremental outputs
- Resolution up to 4,096 cpr
- 5 V power supply versions
- High speed
優點
- Redundancy for safety applications
- Industry standard output formats
- Excellent degree of protection to IP68
- For high volume OEM applications
配置與購買
Configure
規格資料表
產品資料
系統
編碼器類型
Incremental (for other outputs contact RLS)
讀取類型
旋轉
最大解析度
12 位元
精度
最高可達 ±0.5°
最高速度
30,000 RPM
電氣
供應電壓
5 V
電流消耗
Typ. 30mA for each encoder
輸出
Encoder 1: A B Z, RS422 line driver
Encoder 2: A B Z, RS422 line driver
Encoder 2: A B Z, RS422 line driver
機械
編碼器外殼材料
Zamak
磁鐵材料
釤鈷 (Sm2Co17)，鎳銅鎳塗層
纜線最長長度
10 m
環境
EMC 符合性
EN 61326
IP 防護等級
Up to IP68
溫度
Operating: RM: –40 °C to +125 °C (IP64), RM: –40 °C to +85 °C (IP68)
