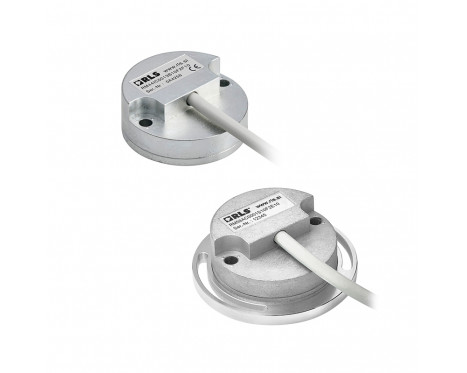

The RM44 / RM58 is an encoder for mounting on electric motors or other devices for measuring shaft position and speed. The solid metal housing offers highest IP protection classes, high EMC immunity, an extended operating temperature range and best possible shock and vibration resistance. Output signals are provided in industry standard absolute, incremental, analogue sinusoidal and linear voltage formats.
Resolutions of up to 13 bits absolute SSI and/or 8,192 counts per revolution incremental for 5 V or 24 V power supply are available.
The RM44 / RM58 with external zeroing is designed for setting the encoder zero position by using a zero pen. It is designed for a supply voltage of 5 V only.
Merkmale
- High speed operation to 30,000 rpm
- Absolute - to 13 bit resolution (8192 counts per revolution)
- Industry standard absolute (SSI, BiSS C), incremental and analogue output formats
- Accuracy to ±0.5°
- Power supply 5 V or 24 V
Vorteile
- Low cost for OEM integration
- Excellent immunity to IP68
- Non-contact, frictionless design
- Simple installation
- RoHS compliant
Konfigurieren und kaufen
Konfigurieren
Datenblatt
Produktdaten
System
Gebertyp
Absolut, Inkrementell
Art der Messung
Rotativ
Ausgangssignale
Analog sinusförmig, Inkrementell, Lineare Spannung, Offener Kollektor, Push-Pull, RS422, SSI
Max. Auflösung
13 Bit
Genauigkeit
Bis zu ±0,5°
Hysterese
0,18°
Max. interpolation factor
8,192
Elektrisch
Versorgungsspannung
Stromaufnahme
Von 13 mA bis 50 mA
Anschluss
Offenes Kabelende
Ausgangssignale
Analog sinusförmig, Inkrementell, Lineare Spannung, Offener Kollektor, Push-Pull, RS422, SSI
Mechanisch
Gewicht
Drehgeber mit 1 m Kabel (ohne Stecker) IP64 = 112 g, IP68 = 129 g.
Umwelt
EMV-Konformität
EN 61326
IP-Schutz
IP64, IP68
RoHS
Erfüllt die EU-Richtlinie 2002/95/EG
Temperatur
