概述

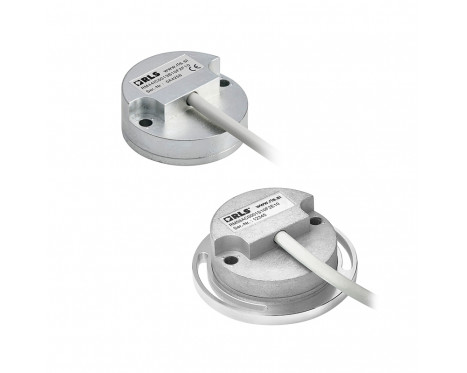

The RM44 / RM58 is an encoder for mounting on electric motors or other devices for measuring shaft position and speed. The solid metal housing offers highest IP protection classes, high EMC immunity, an extended operating temperature range and best possible shock and vibration resistance. Output signals are provided in industry standard absolute, incremental, analogue sinusoidal and linear voltage formats.

Resolutions of up to 13 bits absolute SSI and/or 8,192 counts per revolution incremental for 5 V or 24 V power supply are available.

The RM44 / RM58 with external zeroing is designed for setting the encoder zero position by using a zero pen. It is designed for a supply voltage of 5 V only.

特性

  • High speed operation to 30,000 rpm
  • Absolute - to 13 bit resolution (8192 counts per revolution)
  • Industry standard absolute (SSI, BiSS C), incremental and analogue output formats
  • Accuracy to ±0.5°
  • Power supply 5 V or 24 V

优点

  • Low cost for OEM integration
  • Excellent immunity to IP68
  • Non-contact, frictionless design
  • Simple installation
  • RoHS compliant
配置并购买 配置 规格手册

产品数据

系统

编码器类型
增量式, 绝对式
读取类型
旋转
输出
RS422, SSI, 增量式, 推挽, 模拟正弦/余弦, 线性电压, 集电极开路
最大分辨率
13位
精度
达±0.5°
磁滞
0.18°
Max. interpolation factor
8,192

电气

电源电压
电流消耗
13 mA至最大50 mA
连接
散线
输出
RS422, SSI, 增量式, 推挽, 模拟正弦/余弦, 线性电压, 集电极开路

机械

质量
编码器单元1 m电缆(无插头)IP64 112 g,IP68 129 g。

环境

符合EMC(电磁兼容性)标准
EN 61326
IP保护
IP64, IP68
RoHS
符合欧盟指令2002/95/EC
温度
更多信息请参阅规格手册
