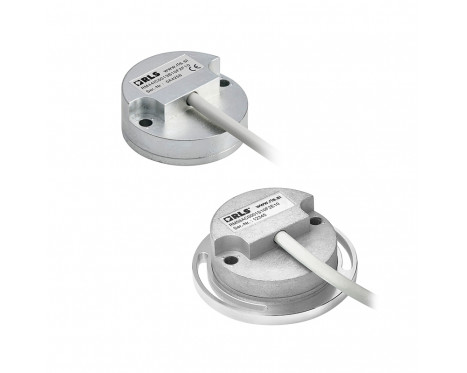

The RM44 / RM58 is an encoder for mounting on electric motors or other devices for measuring shaft position and speed. The solid metal housing offers highest IP protection classes, high EMC immunity, an extended operating temperature range and best possible shock and vibration resistance. Output signals are provided in industry standard absolute, incremental, analogue sinusoidal and linear voltage formats.

Resolutions of up to 13 bits absolute SSI and/or 8,192 counts per revolution incremental for 5 V or 24 V power supply are available.

The RM44 / RM58 with external zeroing is designed for setting the encoder zero position by using a zero pen. It is designed for a supply voltage of 5 V only.

特徵

  • High speed operation to 30,000 rpm
  • Absolute - to 13 bit resolution (8192 counts per revolution)
  • Industry standard absolute (SSI, BiSS C), incremental and analogue output formats
  • Accuracy to ±0.5°
  • Power supply 5 V or 24 V

優點

  • Low cost for OEM integration
  • Excellent immunity to IP68
  • Non-contact, frictionless design
  • Simple installation
  • RoHS compliant
配置與購買 Configure 規格資料表

產品資料

系統

編碼器類型
增量式, 絕對式
讀取類型
旋轉
輸出
RS422, SSI, 增量式, 推拉, 線性電壓, 開放式集極, 類比正弦/餘弦
最大解析度
13 位元
精度
最高可達 ±0.5°
遲滯
0.18°
Max. interpolation factor
8,192

電氣

供應電壓
電流消耗
從 13 mA 至最高 50 mA
連接
飛線
輸出
RS422, SSI, 增量式, 推拉, 線性電壓, 開放式集極, 類比正弦/餘弦

機械

質量
編碼器裝置 1 m 纜線(無連接器)IP64 112 g,IP68 129 g。

環境

EMC 符合性
EN 61326
IP 防護等級
IP64, IP68
RoHS
符合 EU 指令 2002/95/EC
溫度
規格資料表提供詳細資訊
