概述

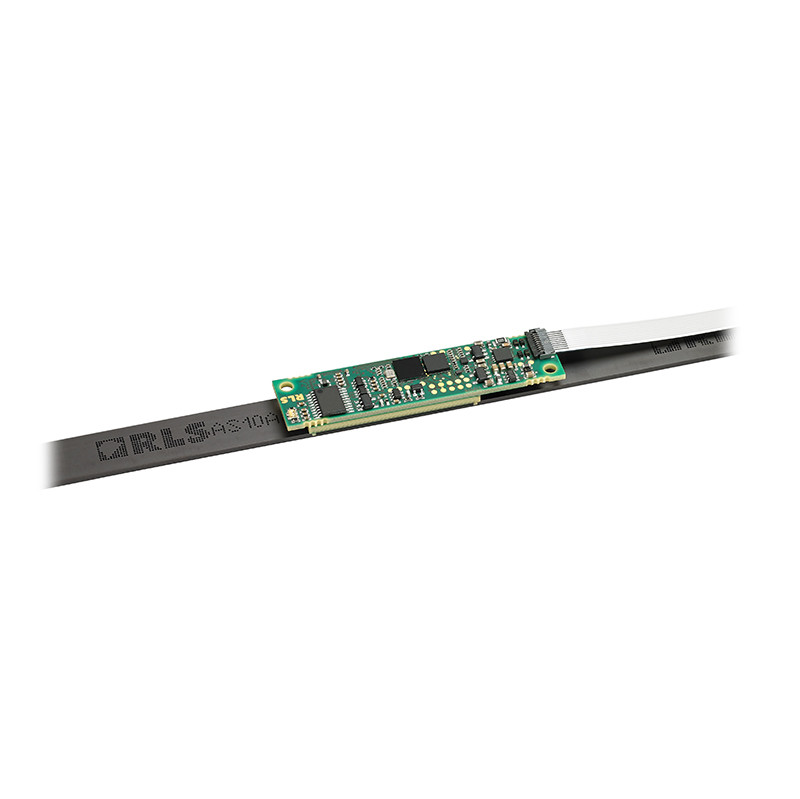

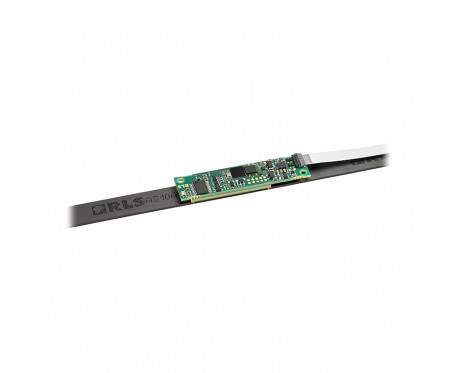

LF11 is a board-level absolute linear magnetic encoder system designed for motion control applications as a position and velocity control loop element.

The miniature design and low weight of the encoder system make it suitable for applications with limited space in relatively clean environments.

特性

  • True absolute system
  • Small footprint 50 × 12 × 5 mm
  • Resolutions up to ~0.244 μm
  • Axis lengths up to 16.3 m
  • BiSS C unidirectional

优点

  • Suitable for highly dynamic control loops
  • Speeds up to 7 m/s at 0.976 μm resolution
配置并购买 配置

产品数据

系统

编码器类型
绝对式
读取类型
直线
系统精度
±30 μm/m at 0.2 mm ride height
重复精度
<1 μm
磁滞
间隙达0.2 mm时< 2 μm
极距
2 mm

电气

电源电压
5 V ±5 %
Set-up time
< 1秒
电流消耗
< 160 mA at 5 V power supply

环境

湿度
0至70%非冷凝
温度
Storage: –20 °C to +85 °C, 工作:0 °C至+55 °C
