概要

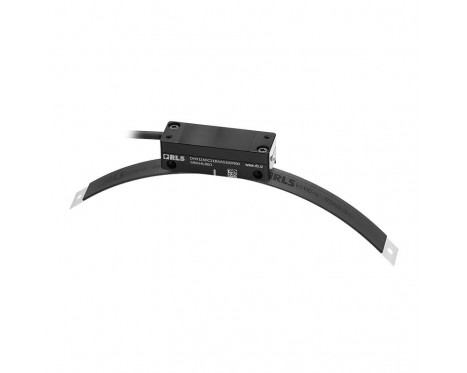

Artos™ is an absolute magnetic encoder system designed for motion control applications as a feedback element for angle/position and velocity control loops. A highly reliable measurement principle and processing provide low position latency, high resolution and angular/linear velocity. The robust design protects the readhead from liquid ingress and high temperatures, so it remains undamaged even in extremely contaminated and hot environments.
メリット
- True absolute system
- High accuracy and resolution
- Suitable for highly dynamic control loops
- Robust design and great EMC compatibility
- SSI and BiSS communication protocols
- Compatible with linear and partial-arc scales
- Wide installation tolerances
- IP67 protection class
構成して購入
Configure
データシート
製品データ
システム
エンコーダタイプ
リニアアブソリュート
出力
BiSS-C, SSI
分解能
Up to 0.122 μm
Compatibility
DS19 absolute magnetic scale
電気
供給電圧
5 V to 30 V
環境
IP 保護
IP67
動作時/保管時温度
-20 °C to +85 °C
Speed calculator
Calculate maximum speed and determine product parameters based on your application.
