AksIM-4™ Big Rings
Off-Axis Rotary Absolute Magnetic Encoder
AksIM-4™ is a non-contact, high performance off-axis absolute rotary encoder designed for integration into applications with limited space and systems with larger diameters. A hollow ring, absolute functionality, and high accuracy make this encoder suitable for many applications.

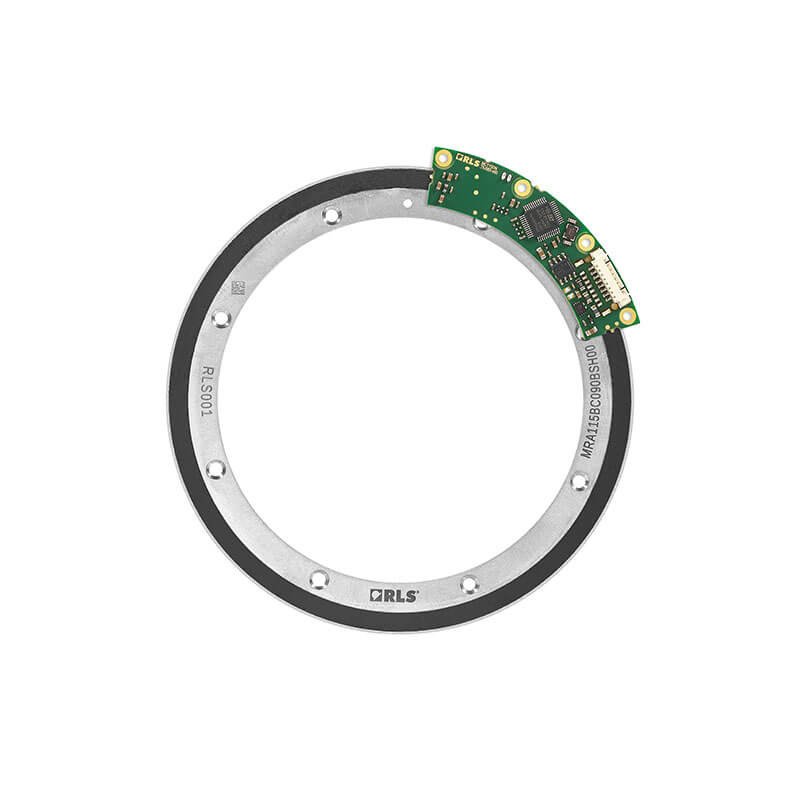

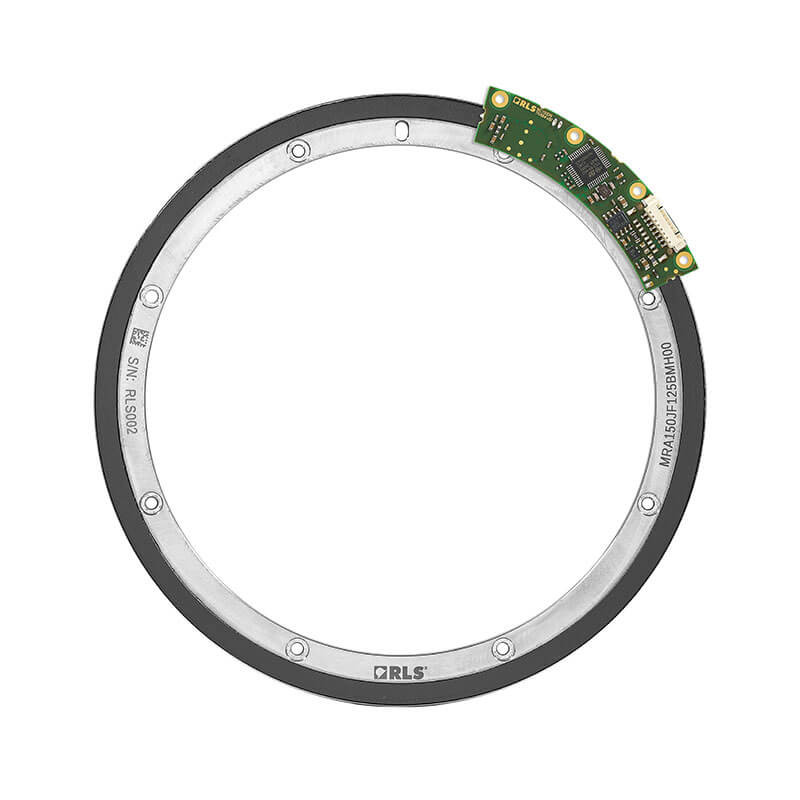

The AksIM-4™ encoder system consists of an axially magnetised ring and a readhead. The encoders are equipped with BiSS communication interface and offer binary resolutions up to 21 bits per revolution and high accuracy.
Features & Benefits
- True absolute system
- Custom magnetic sensor ASIC
- Self-calibration option
- Resolution up to 21 bits
- High accuracy
- High repeatability
- Low profile, non-contact
- High speed operation
- Integrated status LED
Product data
System
- Encoder type
- True absolute encoder
- Reading type
- Axial, Rotary
- Resolution
- 20 bit and 21 bit
- Hysteresis
- Less than unit of resolution
Electrical
- Supply voltage
- 4.5 V to 5.5 V (at the connector)
- Set-up time
- 100 ms (first data ready after supply voltage is in range), worst case: 200 ms
Mechanical

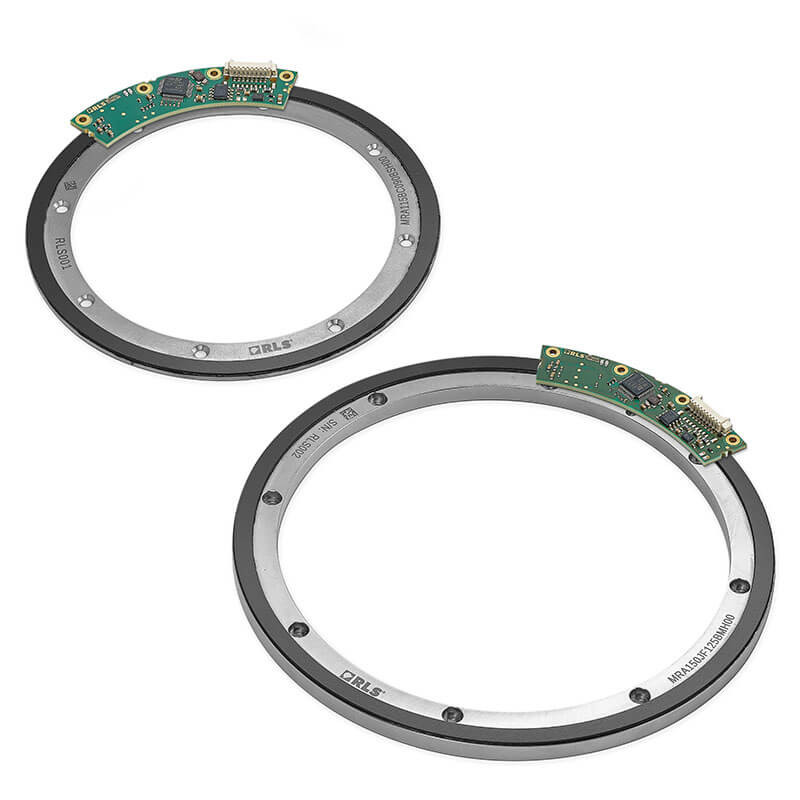

- Available ring sizes (outer diameter)
- 115 mm, 150 mm
Environmental
- Humidity
- Up to 70 % non-condensing
- Operating and storage temperature
- -40 °C to +105 °C
System parts
Downloads
- pdfData sheet: AksIM-4™ Off-Axis Rotary Absolute Magnetic Encoder (MCD01)
- pdfApplication note: CRC calculation (CRCD01)
- pdfApplication note: AksIM-4 BiSS C Register Access (APP03)
- pdfApplication note: AksIM-4 EncoLink Register Access (APP04)
- pdfApplication note: Axial magnetic rings - Installation types and properties (MRAD01)
- zip3D model: AksIM-4™ Off-Axis Rotary Absolute Magnetic Encoders
- zipBiSS C data packet decoder and CRC calculator
- zipSoftware for E201-9Q and E201-9S
