概述

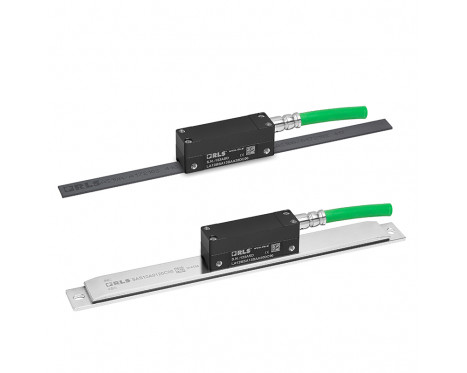

LA12 is a true absolute magnetic encoder system designed for motion control applications as a position and velocity control loop feedback element. The encoder readhead is sealed to IP67 providing reliable operation with resolutions up to 0.244 µm and supports Mitsubishi serial communication.

特性

  • Resolutions up to 0.244 μm
  • High accuracy
  • Speeds up to 7 m/s
  • IP67 sealing

优点

  • True absolute system
  • Mitsubishi serial communications
  • Robust design
配置并购买 配置

产品数据

系统

编码器类型
绝对式
读取类型
直线
重复精度
<1 μm
磁滞
间隙达1 mm时< 12.5 μm
极距
2 mm

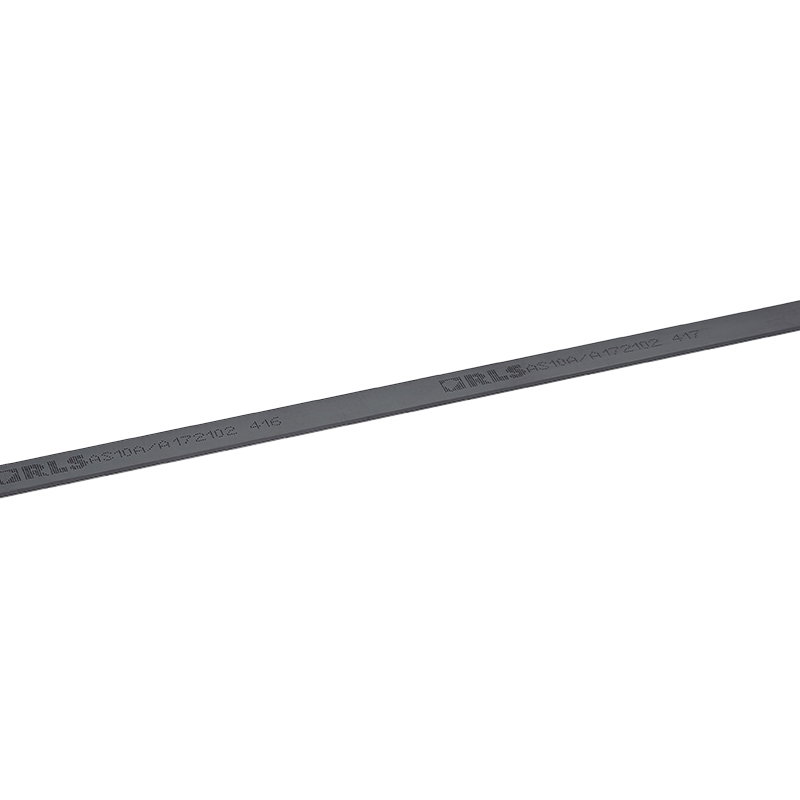

Max. length for AS scale
16.3 m
