Overview

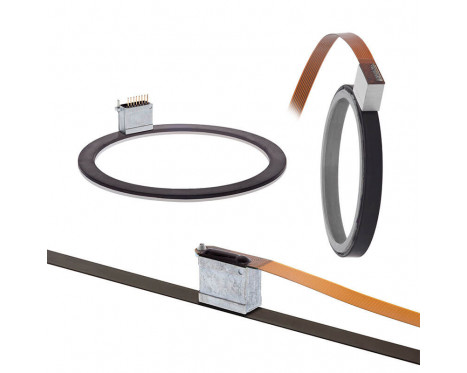

RoLin™ is a component level encoder consisting of a RLM readhead and a magnetic scale or ring. It has been designed for embedded motion control applications as a position control loop element.

The information carrier is a periodically magnetised scale with a pole length of 2 mm. Radial or axial reading of the ring is possible.

Features

  • Incremental quadrature
  • TTL output signals A, B and index Z
  • Resolutions from 125 µm to 0.244 µm

Benefits

  • High speed operation
  • Bi-directional reference mark
  • High reliability from proven non-contact sensing technology
  • Pin / Flex options
  • RoHS compliant
Configure and Buy Configure Data sheet

Product data

System

Encoder type
Incremental
Reading type
Axial, Linear, Radial, Rotary
Max. resolution
13 bit
Accuracy
±40 µm
System accuracy
±40 µm/m
Accuracy grade for MS scales
±40 µm
Repeatability
Better than unit of resolution for movement in the same direction
Hysteresis
< 3 µm up to 0.2 mm ride height
Linear expansion coefficient for MS scale
~ 17 × 10-6/K
Pole length
2 mm
Max. interpolation factor
8,192
Maximum length for MS scale
50 m

Electrical

Supply voltage
4.75 V to 5.5 V
Current consumption
< 30mA
Connection
8-pin low-profile connector or soldering pads, Flex cable
Outputs
BiSS-C, Incremental, RS422, SSI

Environmental

RoHS
Compliant with EU Directive 2002/95/EC
Shocks (11 ms)
300 m/s2 (IEC 60068-2-27)
Temperature
Operating: –20 °C to +85 °C (with flex cable), –40 °C to +85 °C (without flex cable), Storage: –40 °C to +85 °C
Vibrations (55 Hz to 2000 Hz)
300 m/s2 (IEC 60068-2-6)
More info in Data sheet
