概述

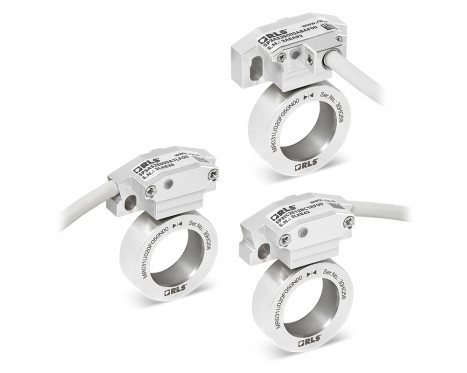

SpinCo™ is an incremental magnetic encoder system designed for use as primary position and speed feedback sensor for machine tool spindles.

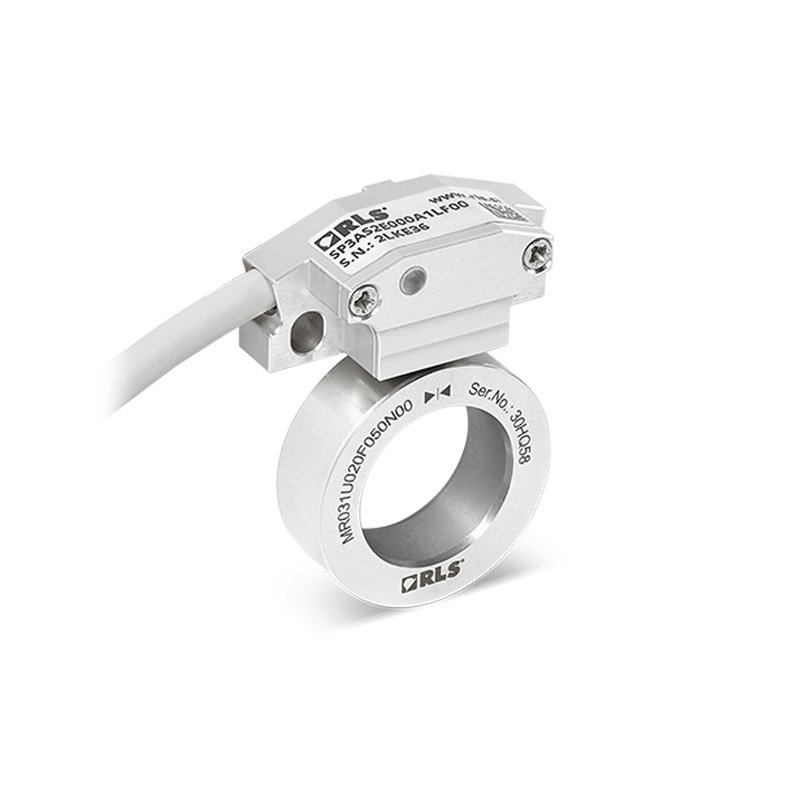

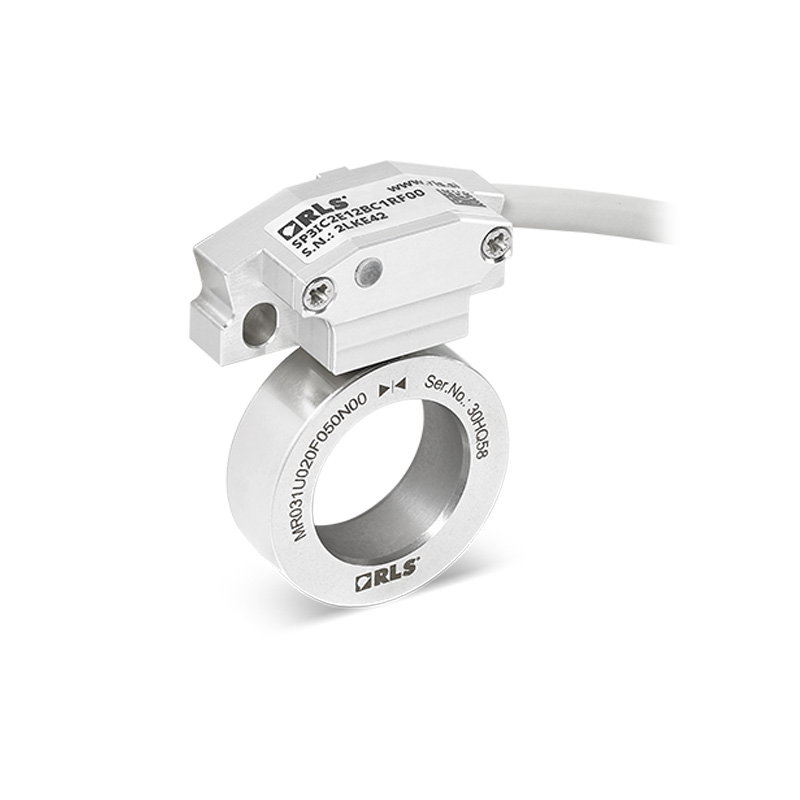

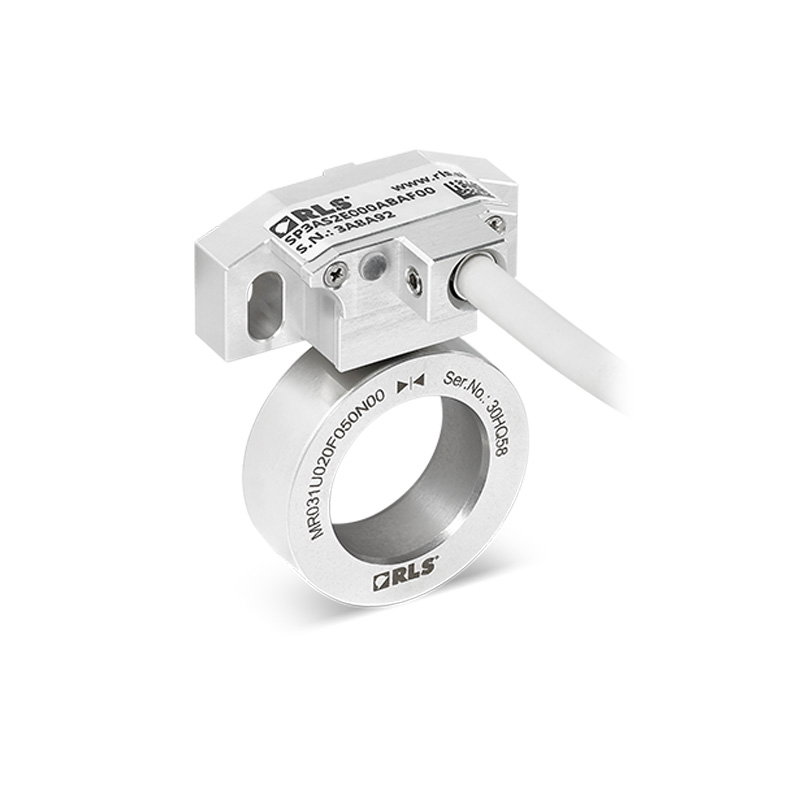

It consists of two key elements, a readhead and a magnetic ring with welded cover foil.

特性

  • Different ring sizes available
  • Speeds up to 55,000 rpm
  • From 50 to 556 sin/cos periods per revolution
  • ABZ digital incremental outputs with up to 4,096 steps
    per sin/cos period
  • Analogue output signals (1 Vpp)

优点

  • Robust design
  • High operating speed
  • Signal stability
  • IP67 protection
  • Wide installation tolerances
  • Small readhead size
  • High accuracy
配置并购买 配置 规格手册

产品数据

系统

编码器类型
增量式
极距
1 mm, 2 mm

电气

电源电压
5 V ±10 % (absolute maximum 6 V)
电流消耗
< 50 mA

机械

电缆
TPE AWG 26, shielded, Ø4.8 ±0.15 mm
质量
Readhead: 120 g (1 m cable, no connector)

环境

IP保护
IP67
工作和存储温度
-40 °C至+85 °C
