概述

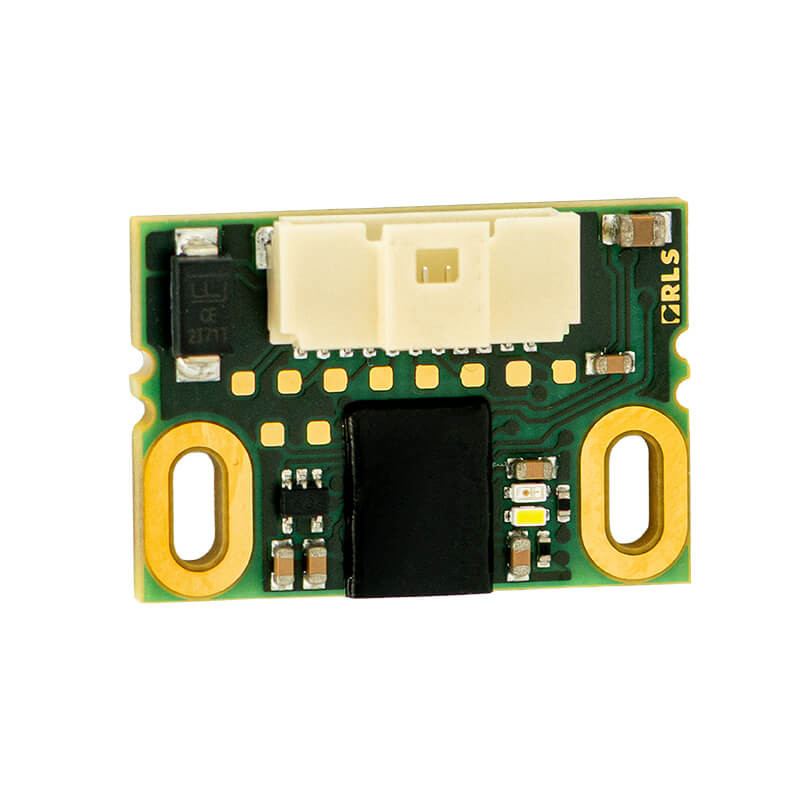

RLC2IA is a PCB-level encoder with a 24 V incremental push-pull output signal.

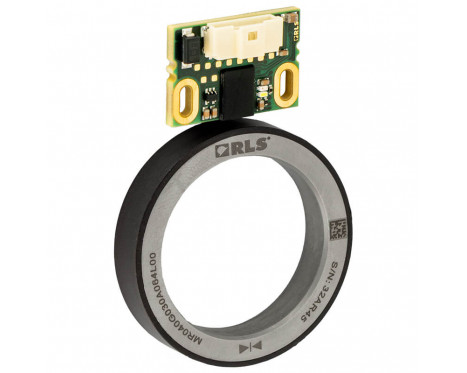

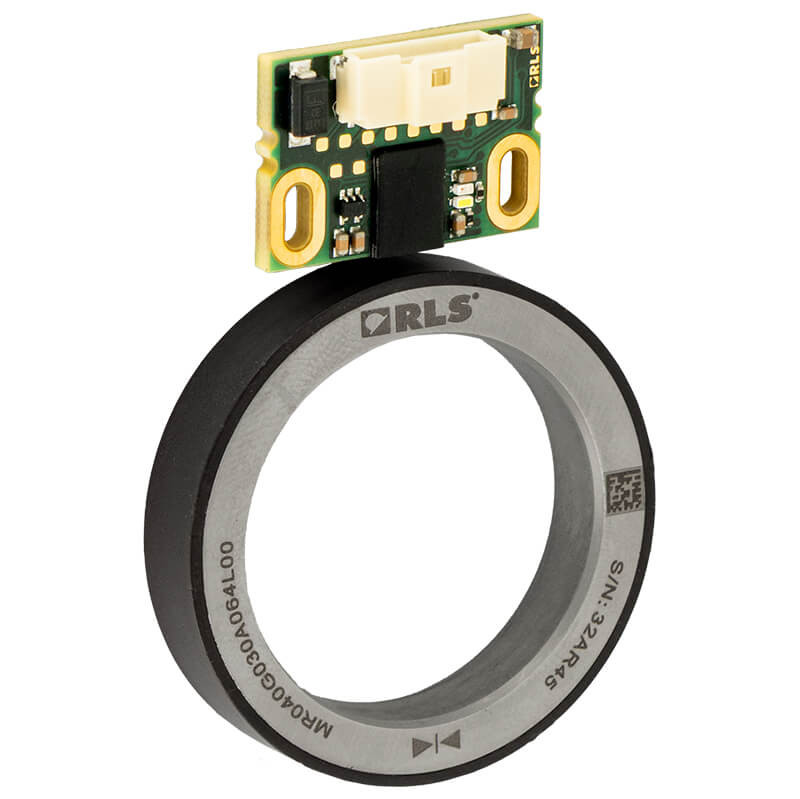

Encoder system consists of a PCB sensor and a magnetic scale or ring. It is designed for embedded motion control applications as a position control loop element in applications with limited space. It guarantees a highly repeatable position measurement under wide mounting tolerances and temperature ranges.
特性
- Incremental push-pull output (24 V)
- Unique or periodic bidirectional index impulse
- High system accuracy up to ±10 μm
- High threshold logic (HTL)
优点
- For use with scales, radial and axial rings
- Non-contact and wear-free measuring principle
- Miniature design
- Status indicator LED
Request a quote
产品数据
系统
编码器类型
增量式
读取类型
径向, 直线, 轴向
输出
增量式, 推挽
最大分辨率
13位
精度
Up to ±10 µm
电气
电源电压
24 V ±10 % (on the readhead)
电流消耗
< 10.5 mA without 1000 Ω termination, < 85 mA with 1000 Ω termination
环境
工作和存储温度
-40 °C至+105 °C
