개요

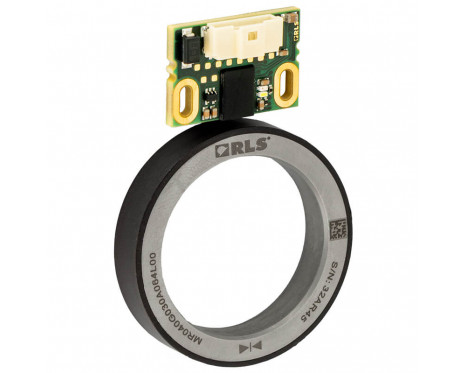

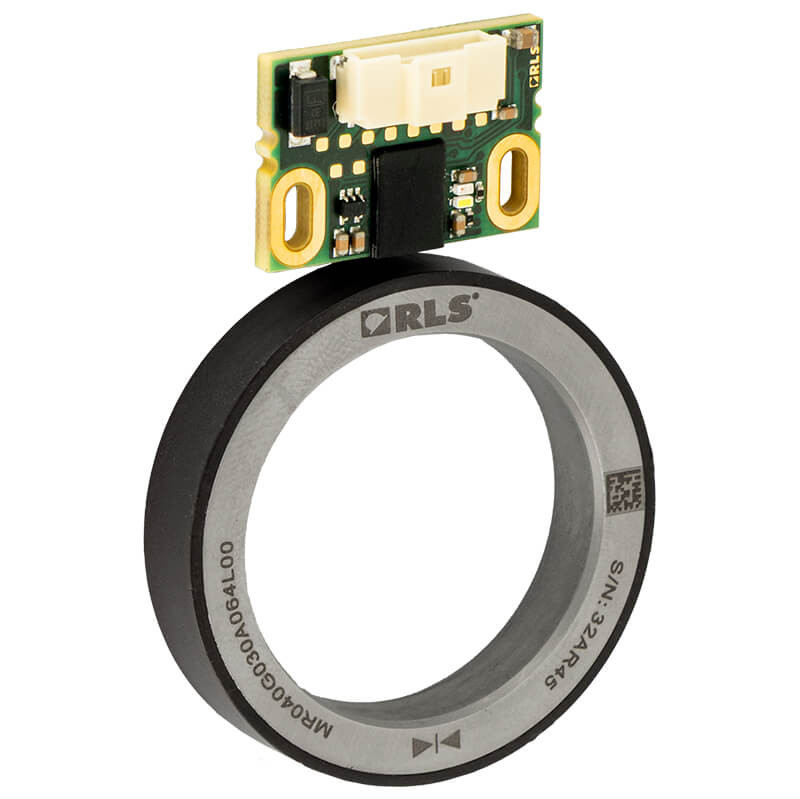

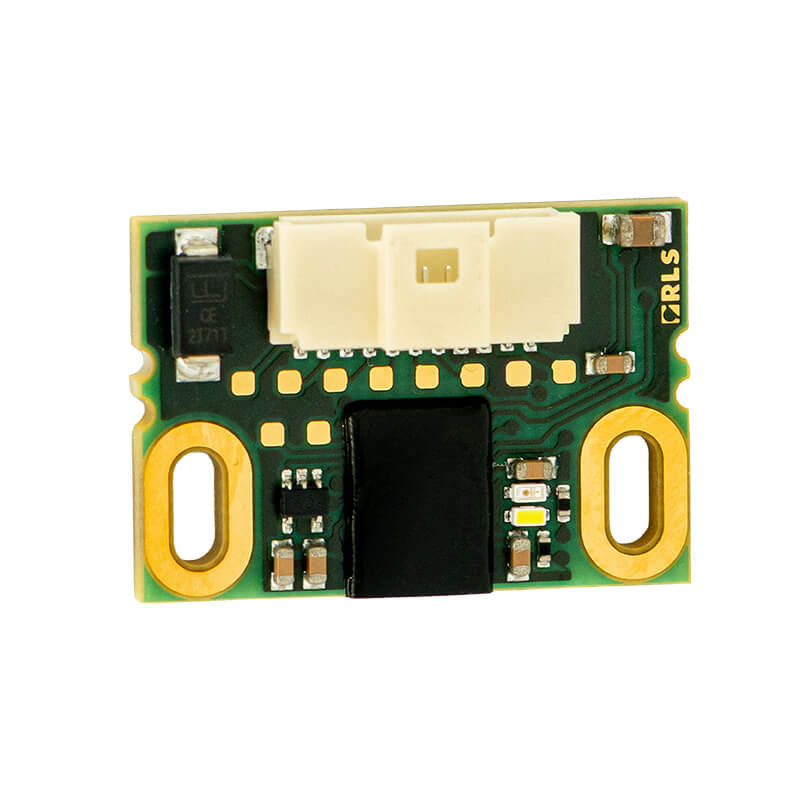

RLC2IA is a PCB-level encoder with a 24 V incremental push-pull output signal.
Encoder system consists of a PCB sensor and a magnetic scale or ring. It is designed for embedded motion control applications as a position control loop element in applications with limited space. It guarantees a highly repeatable position measurement under wide mounting tolerances and temperature ranges.
기능
- Incremental push-pull output (24 V)
- Unique or periodic bidirectional index impulse
- High system accuracy up to ±10 μm
- High threshold logic (HTL)
이점
- For use with scales, radial and axial rings
- Non-contact and wear-free measuring principle
- Miniature design
- Status indicator LED
Request a quote
제품 데이터
시스템
엔코더 유형
증분
판독 유형
리니어, 원심 방향, 축 방향
출력
증분, 푸시-풀
최대 분해능
13비트
정확도
Up to ±10 µm
전기
공급 전압
24 V ±10 % (on the readhead)
전류 소모
< 10.5 mA without 1000 Ω termination, < 85 mA with 1000 Ω termination
환경
작동 및 보관 온도
-40 °C ~ +105 °C
