개요

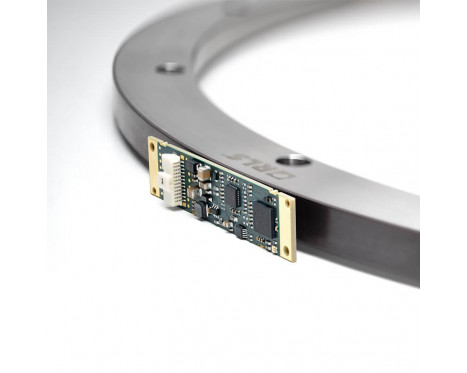

Artos™ is an absolute magnetic encoder system designed for motion control applications as a feedback element for angle and velocity control loops. A highly reliable measurement principle and processing ensure low position latency, high resolution and angular velocity. The compact PCB-A design and low weight of the encoder system make it suitable for applications with limited space in relatively clean environments.

이점

  • True absolute system
  • High accuracy and resolution
  • Suitable for highly dynamic control loops
  • SSI and BiSS C communication protocols + parallel ABZ channel
  • Rotational speeds up to 30,000 rpm
  • Compatible with solid rings
  • Wide installation tolerances
  • Compact design with horizontal or vertical connector
구성 및 구매 Configure 데이터 시트

제품 데이터

시스템

엔코더 유형
Rotary absolute
판독 유형
원심 방향
출력
BiSS-C, parallel ABZ incremental signals, SSI
최대 분해능
Up to 23 bits (depends on the ring size)
Compatibility
SAR ring (SAR057 to SAR478)
Max. rotational speed
up to 30,000 RPM

전기

공급 전압
5 V to 30 V

환경

작동 및 보관 온도
-20 °C to +85 °C
데이터 시트의 추가 정보

Speed calculator

Calculate maximum speed and determine product parameters based on your application.

다운로드
