概要

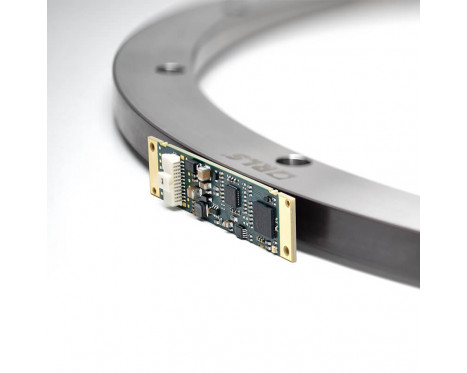

Artos™ is an absolute magnetic encoder system designed for motion control applications as a feedback element for angle and velocity control loops. A highly reliable measurement principle and processing ensure low position latency, high resolution and angular velocity. The compact PCB-A design and low weight of the encoder system make it suitable for applications with limited space in relatively clean environments.
メリット
- True absolute system
- High accuracy and resolution
- Suitable for highly dynamic control loops
- SSI and BiSS C communication protocols + parallel ABZ channel
- Rotational speeds up to 30,000 rpm
- Compatible with solid rings
- Wide installation tolerances
- Compact design with horizontal or vertical connector
構成して購入
Configure
データシート
製品データ
システム
エンコーダタイプ
Rotary absolute
読取りタイプ
径方向
出力
BiSS-C, parallel ABZ incremental signals, SSI
最高分解能
Up to 23 bits (depends on the ring size)
Compatibility
SAR ring (SAR057 to SAR478)
Max. rotational speed
up to 30,000 RPM
電気
供給電圧
5 V to 30 V
環境
動作時/保管時温度
-20 °C to +85 °C
Speed calculator
Calculate maximum speed and determine product parameters based on your application.
