개요

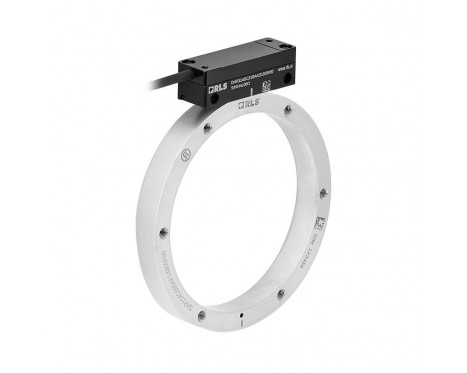

Artos™ is an absolute magnetic encoder system designed for motion control applications as a feedback element for angle and velocity control loops. A highly reliable measurement principle and processing provide low position latency, high resolution and angular velocity. The robust design protects the readhead and magnetic ring from liquid ingress and high temperatures, so they remain undamaged even in extremely contaminated and hot environments.

이점

  • True absolute system
  • High accuracy and resolution
  • Suitable for highly dynamic control loops
  • Robust design and great EMC compatibility
  • Rotational speeds up to 30,000 rpm
  • SSI and BiSS communication protocols
  • Compatible with solid rings
  • Wide installation tolerances
  • IP67 protection class
구성 및 구매 Configure 데이터 시트

제품 데이터

시스템

엔코더 유형
Rotary absolute
판독 유형
원심 방향
출력
BiSS-C, SSI
최대 분해능
Up to 23 bits (depends on the ring size)
Compatibility
SAR ring (SAR057 to SAR478)
Max. rotational speed
up to 30,000 RPM

전기

공급 전압
5 V to 30 V

환경

IP 보호
IP67
작동 및 보관 온도
-20 °C to +85 °C
데이터 시트의 추가 정보

Speed calculator

Calculate maximum speed and determine product parameters based on your application.
