概要

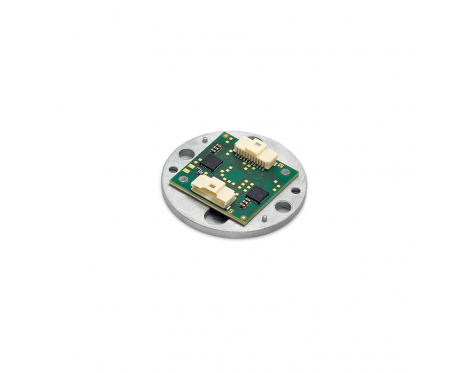

The RMF44 /RMF58 is a non-contact magnetic encoder with two independent outputs and no common connections between two devices. The redundancy is realized only on the sensor and driver side. The encoder uses only one magnet (D7xH4 mm). The encoders are suitable for demanding applications that require a higher level of safety.
機能
- Accuracy to ±0.5°
- Dual incremental outputs
- Resolution up to 4,096 cpr
- 5 V power supply versions
- High speed
メリット
- Redundancy for safety applications
- Industry standard output formats
- For high volume OEM applications
構成して購入
Configure
データシート
製品データ
システム
エンコーダタイプ
Incremental (for other outputs contact RLS)
読取りタイプ
ロータリ
最高分解能
12bit
精度
最高±0.5°
最高速度
30,000rev/min
電気
供給電圧
5V
電流消費
Typ. 30mA for each encoder
出力
Encoder 1: A B Z, RS422 line driver
Encoder 2: A B Z, RS422 line driver
Encoder 2: A B Z, RS422 line driver
機械
エンコーダハウジングの材質
Zamak
磁石の材質
SmCo (Sm2Co17)、ニッケル-銅-ニッケル (Ni-Cu-Ni) コーティング
最大ケーブル長
10m
環境
温度
Operating: RFM: –40 °C to +125 °C (without connector), RFM: –40 °C to +105 °C (with connector)
