概要

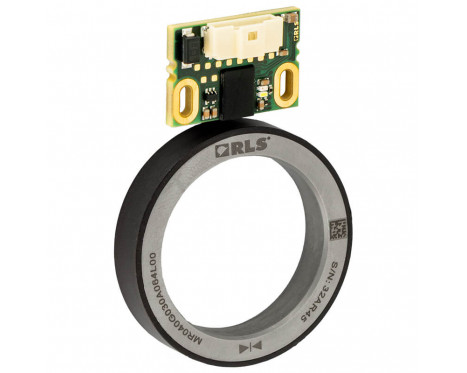

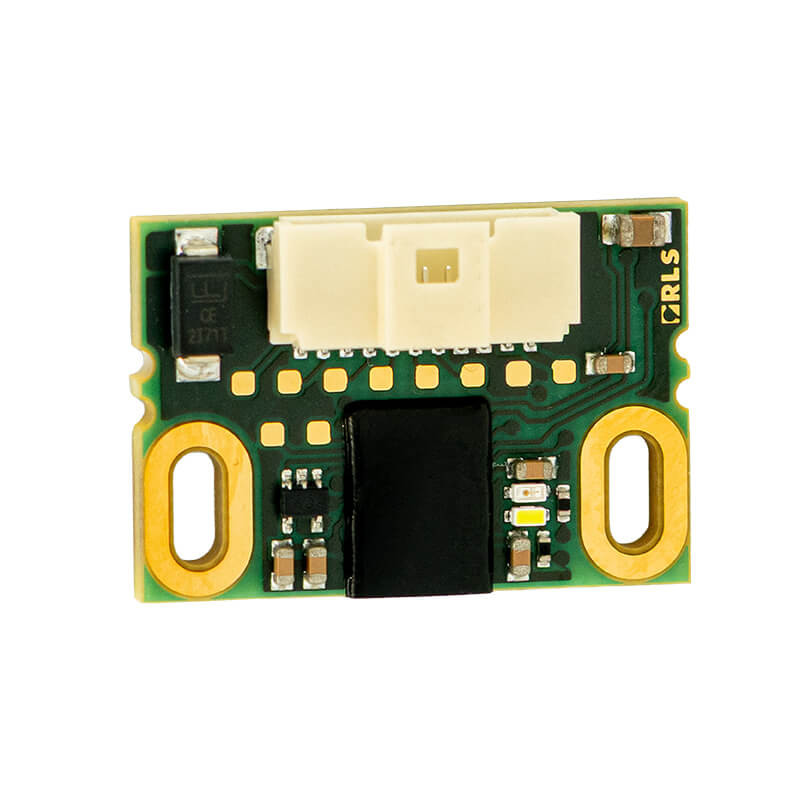

RLC2IA is a PCB-level encoder with a 24 V incremental push-pull output signal.

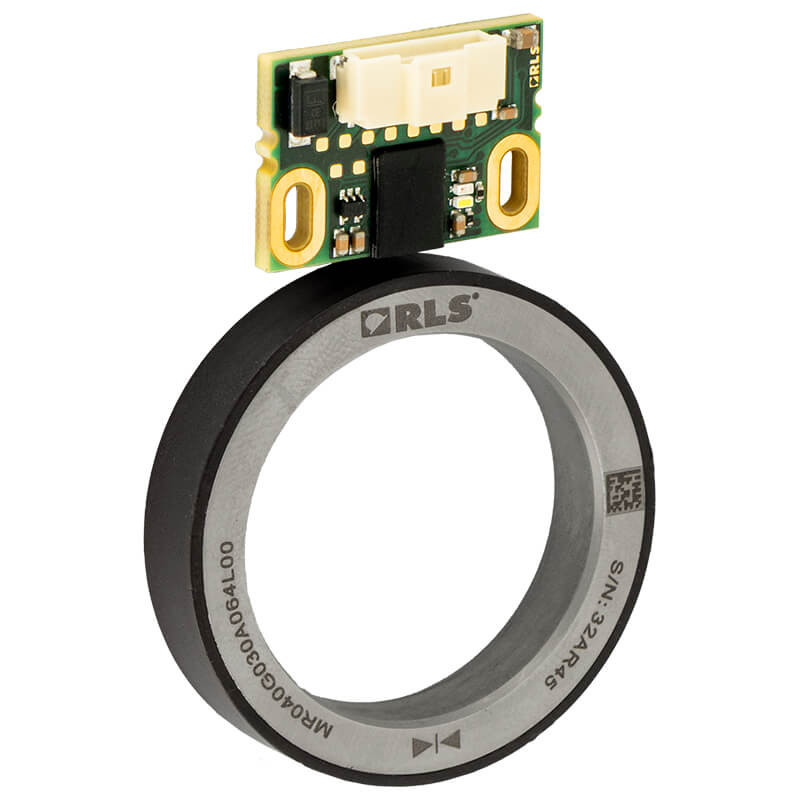

Encoder system consists of a PCB sensor and a magnetic scale or ring. It is designed for embedded motion control applications as a position control loop element in applications with limited space. It guarantees a highly repeatable position measurement under wide mounting tolerances and temperature ranges.
機能
- Incremental push-pull output (24 V)
- Unique or periodic bidirectional index impulse
- High system accuracy up to ±10 μm
- High threshold logic (HTL)
メリット

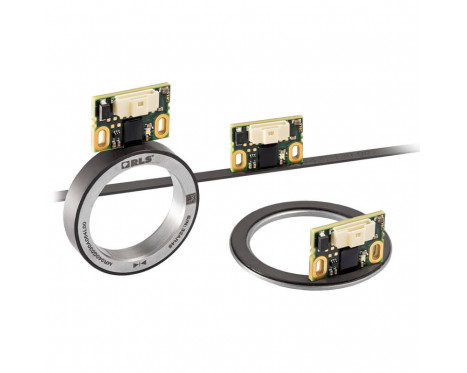

- For use with scales, radial and axial rings
- Non-contact and wear-free measuring principle
- Miniature design
- Status indicator LED
Request a quote
製品データ
システム
エンコーダタイプ
インクリメンタル
読取りタイプ
リニア, 径方向, 軸方向
出力
インクリメンタル, プッシュプル
最高分解能
13bit
精度
Up to ±10 µm
電気
供給電圧
24 V ±10 % (on the readhead)
電流消費
< 10.5 mA without 1000 Ω termination, < 85 mA with 1000 Ω termination
環境
動作時/保管時温度
-40℃～+105℃
