概觀

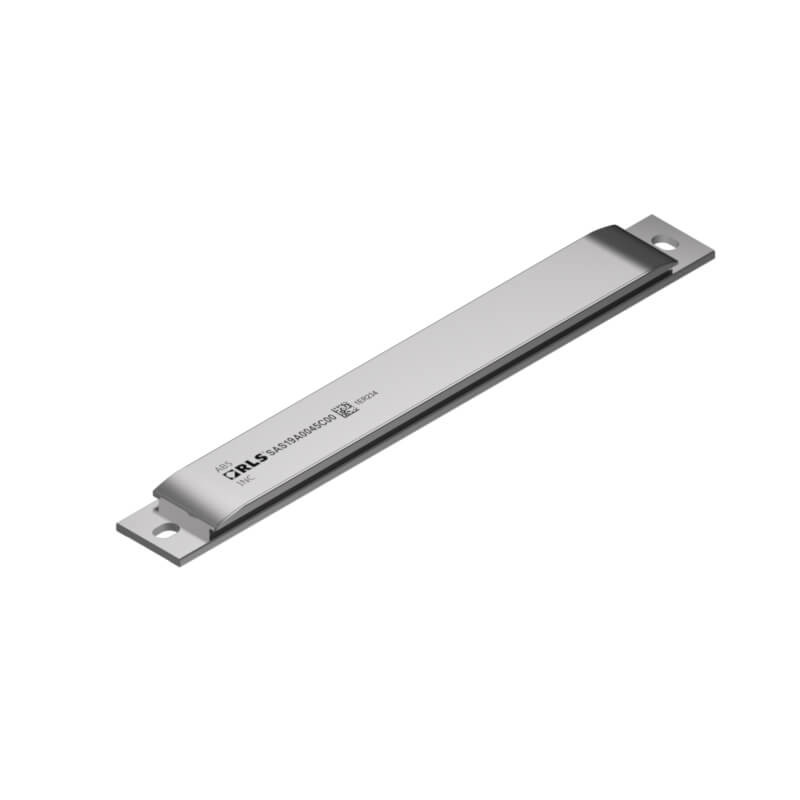

The robust absolute magnetic scale consists of a stainless steel carrier and an elastomer-bonded ferrite. The SAS19 is a solid scale available in predefined lengths. It can be fully enclosed making it suitable for harsh environments where oils or coolants are present. It is designed for compatibility with Artos readheads.
特徵
- Scale length up to 1.36 m
- Fully enclosed IP67
- Compatible with Artos readheads
優點
- Excellent resistance to oils, coolants and grease
- Easy installation
配置與購買
Configure
規格資料表
產品資料
系統
精度
±6 μm/m（安裝高度 0.2 mm）
Max. scale length
1.36 m
環境
溫度
存放條件: –40 °C to +75 °C, 工作溫度：–40 °C 至 +100 °C
