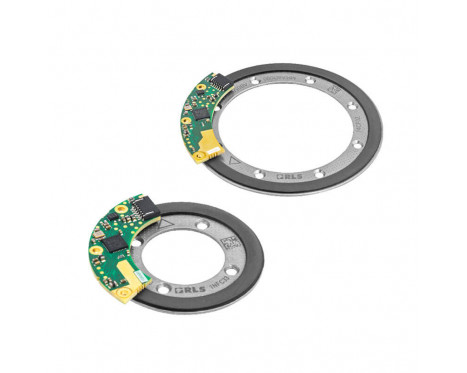

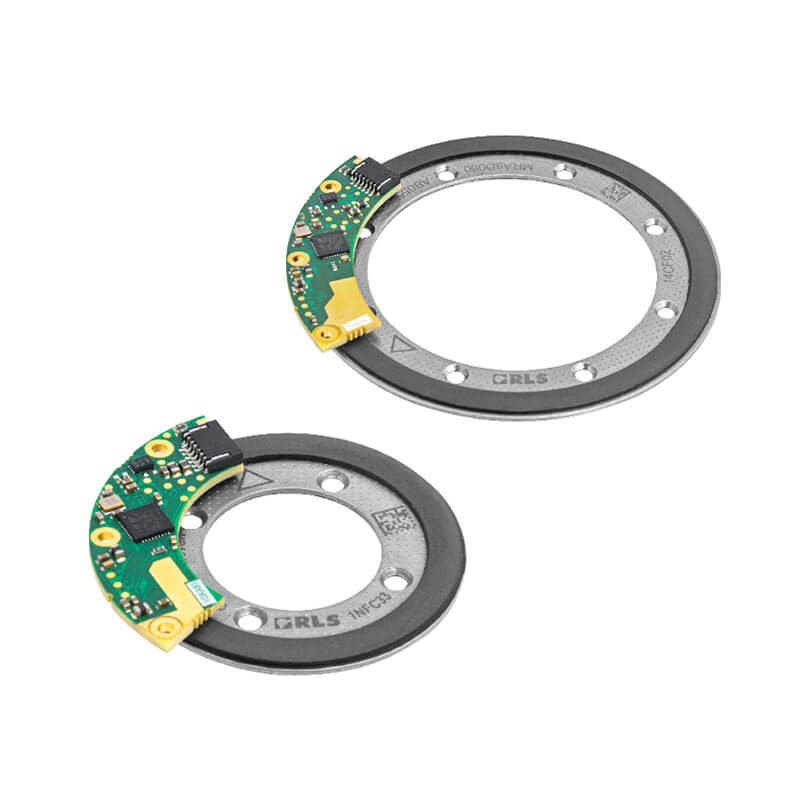

AksIM™ 離軸旋轉絕對式磁性編碼器模組
  • Video

建議不要用於新設計。請前往 AksIM-2™ 離軸旋轉絕對式編碼器。

特徵

  • 解析度高達 20 位元
  • 內建狀態 LED
  • SSI、SPI、PWM、BiSS、異步化串行通訊介面
  • I2C（應要求提供）
  • 抗鏽磁環

優點

  • 真正絕對式系統
  • 客製化磁性感測器 ASIC
  • 無遲滯
  • 高速運作
  • 輕巧纖薄、非接觸式
  • 內建自我監控功能
規格資料表

應用範圍

電動馬達 醫療 機器人

下載
