概述

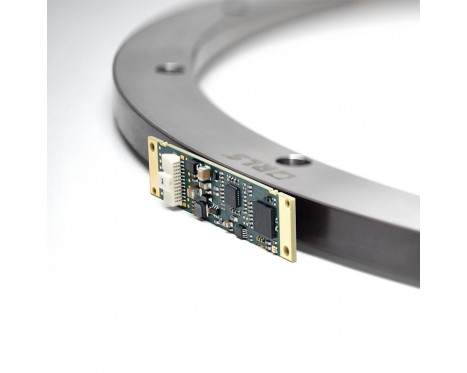

Artos™ is an absolute magnetic encoder system designed for motion control applications as a feedback element for angle and velocity control loops. A highly reliable measurement principle and processing ensure low position latency, high resolution and angular velocity. The compact PCB-A design and low weight of the encoder system make it suitable for applications with limited space in relatively clean environments.
优点
- True absolute system
- High accuracy and resolution
- Suitable for highly dynamic control loops
- SSI and BiSS C communication protocols + parallel ABZ channel
- Rotational speeds up to 30,000 rpm
- Compatible with solid rings
- Wide installation tolerances
- Compact design with horizontal or vertical connector
配置并购买
配置
规格手册
产品数据
系统
编码器类型
Rotary absolute
读取类型
径向
输出
BiSS-C, parallel ABZ incremental signals, SSI
最大分辨率
Up to 23 bits (depends on the ring size)
Compatibility
SAR ring (SAR057 to SAR478)
Max. rotational speed
up to 30,000 RPM
电气
电源电压
5 V to 30 V
环境
工作和存储温度
-20 °C to +85 °C
Speed calculator
Calculate maximum speed and determine product parameters based on your application.
