概要

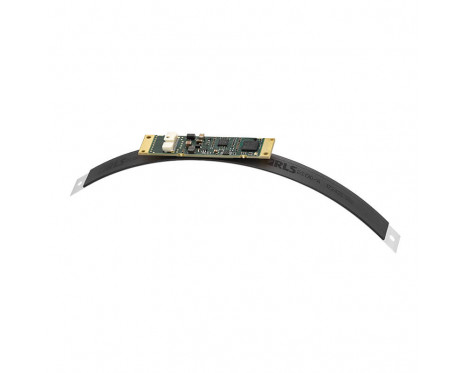

Artos™ is an absolute magnetic encoder system designed for motion control applications as a feedback element for angle/position and velocity control loops. A highly reliable measurement principle and processing ensure low position latency, high resolution and angular/linear velocity. The compact PCB-A design and low weight of the encoder system make it suitable for applications with limited space in relatively clean environments.
メリット
- True absolute system
- High accuracy and resolution
- Suitable for highly dynamic control loops
- SSI and BiSS C communication protocols
- Rotational speeds up to 30,000 rpm
- Compatible with linear and partial-arc magnetic scales
- Wide installation tolerances
- Compact design with horizontal or vertical connector
構成して購入
Configure
データシート
製品データ
システム
エンコーダタイプ
リニアアブソリュート
出力
BiSS-C, SSI
分解能
Up to 0.122 μm
Compatibility
DS19 absolute magnetic scale
電気
供給電圧
5 V to 30 V
環境
動作時/保管時温度
-20 °C to +85 °C
Speed calculator
Calculate maximum speed and determine product parameters based on your application.
