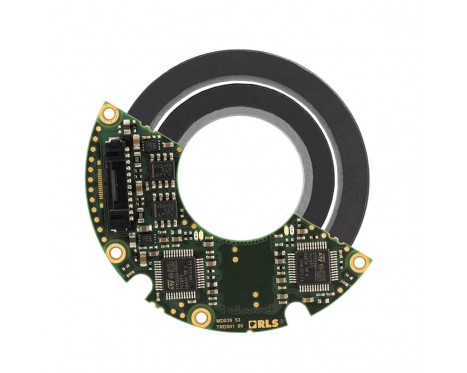

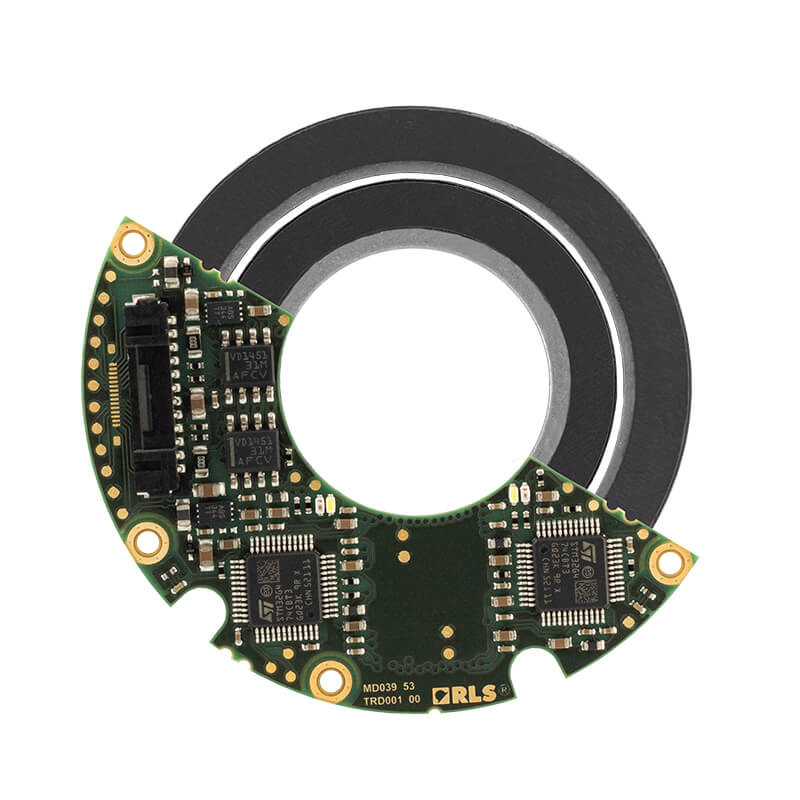

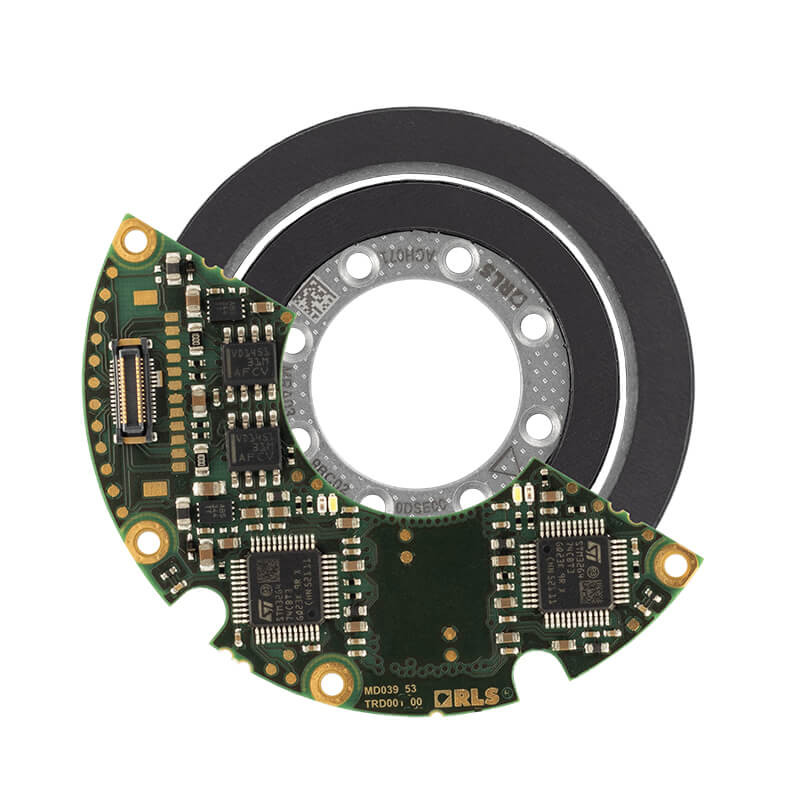

AksIM-4™ Dual Concentric
Off-axis Rotary Absolute Magnetic Encoder
The AksIM-4™ Dual Concentric high-performance encoder integrates two non-contact absolute rotary sensors in a single device. This innovative solution provides simultaneous motor and reducer position feedback in a robot joint for exceptionally smooth, synchronised, and accurate motion control. Its compact, space-saving design makes it perfect for advanced robotics and other applications where installation space is limited, without sacrificing accuracy, reliability, or performance.
特長とメリット
- Two-in-one encoder solution
- Ultra-compact, low-profile design
- High accuracy and repeatability
- Multiturn counter option
- Immunity to external magnetic fields
- Saves space
- Reduces complexity in robotic joints
- Immediate feedback at power-up
- Reliable performance even in demanding environments
Request a quote
製品データ
システム
- エンコーダタイプ
- アブソリュートエンコーダ
- 読取りタイプ
- 軸方向
- 分解能
- Input encoder: 19 bit; Output encoder: 19 bit
- システム精度
- 最高 ±0.006°
電気
- 供給電圧
- 4.5V～5.5V (コネクタ箇所)
環境
- 動作時/保管時温度
- -40℃～+105℃
