AksIM-2 Redundant Encoder

MB039-R

More Views

  • MB039-R
  • MB053-R

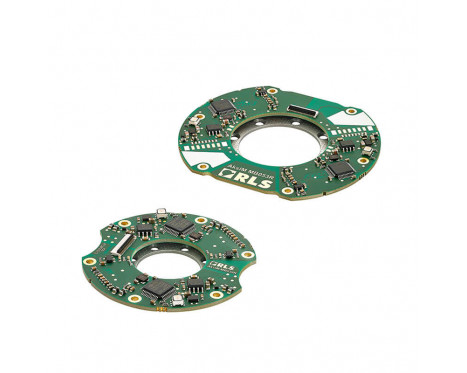

The AksIM-2 encoder has a built-in advanced self-monitoring function that continuously checks several internal parameters. Error reports, warnings and other status signals are available on all communication interfaces and are with the on-board LED. Redundant readheads consist of two identical, completely independent and electrically isolated readheads. These are suitable for advanced applications that require a higher level of security. This configuration can be used to monitor the encoder position via two independent channels. The difference between the channels is about 180°. Due to the digital barcode magnetization on the ring, the encoder is fully redundant even when using a single ring.

MB039-R
Resolution Up to 19 bit + 16 bit multiturn
Accuracy ±0.05°



MB053-R
Resolution Up to 20 bit + 16 bit multiturn
Accuracy ±0.05°
All output types
Supply voltage 5 V ± 10 %
Current consumption 2 × 135 mA (typ.)
Isolation 250 VAC
Output types RS422 differential: BiSS, UART, SSI
Connector type FFC, 20-pin, 0.5 mm pitch, contacts on top and bottom side
Connector Molex 503480-2000 (Right-Angle, with Flip Lock)
All output types
Operating temperature -40 °C to +85 °C

Features

  • Redundant version for higher safety applications
  • Two encoders on the same cable
  • True absolute system
  • Built-in advanced self-monitoring functions
  • Low profile, non-contact

Buy products by choosing the specificationsClick here to choose the specifications

Loading configurator...
Lead time up to: 10 working days
